Sanitary Tri-Clamp Flow Meters for Food Industry，Beer / Milk Flow Meter

Sanitary Tri-Clamp Flow Meters for Food Industry,Beer / Milk Flow Meter

Description

Sanitary type turbine flow metera flow meter that widely applied in industries of pharmaceutical, food, beverage for measurement, batching, control, filling, etc. Rotating part of the flow meter is made of special material that possesses good anti-corrosive and rust proof performance. Structure of the flow meter is special designed and greatly approved accuracy and repeatability of the flow meter. Product also with easy maintenance connection, which is suitable for pharmaceutical and beverage industries.

Features

☆ High accuracy, generally up to ±1%R, ±0.5%R, high accuracy up to 0.2%R
☆Good repeat-ability, short-term repeat-ability up to 0.05% ~ 0.2%, in the trade settlement is the preferred choice of flow meter.
☆ Output of pulse frequency signal, suitable for totalizer and connection with PC; no zero shift and strong interference resist
☆ High frequency signal(3~4KHz) can be obtained, the signal resolution is strong.
☆ Wide range, medium and large diameter up to 1:20, small caliber 1:10.
☆ Compact structure & convenient maintenance

Specifications

Paremeter		Value	Unit
Diameter	Thread	4, 6, 10, 15, 20, 25, 32, 40	mm
Diameter	Flange(Clamp)	15, 20, 25, 32, 40, 50, 65, 80, 100, 125,150, 200	mm
Accuracy		±1, ±0.5, ±0.2 (customized)	%R
Range ratio		1:10, 1:15, 1:20
Sensor material		304, 316(L) stainless steel etc.
Working environment	Medium temp.	-20~120	°C
	Ambient temp	-10~55	°C
	Relative humidity	5%~90%
	Atmospheric pressure	86~106	KPa
Signal output		Sensor: pulse frequency signal, low electrical level≤0.8V, high level≥8V Transmitter: two wire, 4-20 mA DC current signal
Comm interface		RS485
Power supply		Sensor: +12V DC, +24V DC (optional) Transmitter: +24V DC Local indication type: built-in 3V lithium cell or +24VDC external
Signal Transmission Wire		STVPV3×0.3 (3 wire), 2×0.3 (2 wire)
Transmission Distance		No more than 1000	m
Signal Line Interface		Basic type: Hausman connector or 3-core wire; Explosion-proof type: M20 × 1.5 (F)
Explosive-proof grade		Basic type: non-explosion proof; explosion proof type: ExdIIBT6
Protection level		IP65

Measuring Range & Working Pressure

Diameter (mm)	Standard Range (m³/h)	Extended Range (m³/h)	Normal Connection & Pressure Rating (MPa)	Special Pressure Rating (MPa) (Flange Connection)
DN4	0.04~0.25	0.04~0.4	Thread connection/6.3	10, 16, 25
DN6	0.1~0.6	0.06~0.6	Thread connection/6.3	10, 16, 25
DN10	0.2~1.2	0.15~1.5	Thread connection/6.3	10, 16, 25
DN15	0.6~6	0.4~8	Thread connection/6.3	4.0, 6.3, 10, 16, 25
DN15	0.6~6	0.4~8	Flange connection/2.5	4.0, 6.3, 10, 16, 25
DN20	0.8~8	0.45~9	Thread connection/6.3	4.0, 6.3, 10, 16, 25
DN20	0.8~8	0.45~9	Flange connection/2.5	4.0, 6.3, 10, 16, 25
DN25	1~10	0.5~10	Thread connection/6.3	4.0, 6.3, 10, 16, 25
DN25	1~10	0.5~10	Flange connection/2.5	4.0, 6.3, 10, 16, 25
DN32	1.5~15	0.8~15	Thread connection/6.3	4.0, 6.3, 10, 16, 25
DN32	1.5~15	0.8~15	Flange connection/2.5	4.0, 6.3, 10, 16, 25
DN40	2~20	1~20	Thread connection/6.3	4.0, 6.3, 10, 16, 25
DN40	2~20	1~20	Flange connection/2.5	4.0, 6.3, 10, 16, 25
DN50	4~40	2~40	Flange connection/2.5	4.0, 6.3, 10, 16, 25
DN65	7~70	4~70	Flange connection/2.5	4.0, 6.3, 10, 16, 25
DN80	10~100	5~100	Flange connection/2.5	4.0, 6.3, 10, 16, 25
DN100	20~200	10~200	Flange connection/2.5	4.0, 6.3, 10, 16, 25
DN125	25~250	13~250	Flange connection/1.6	2.5, 4.0, 6.3, 10, 16
DN150	30~300	15~300	Flange connection/1.6	2.5, 4.0, 6.3, 10, 16
DN200	80~800	40~800	Flange connection/1.6	2.5, 4.0, 6.3, 10, 16

Ordering information

Model								Remarks
KTF
DN	4							4 mm
	6							6 mm
	10							10 mm
	15							15 mm
	20							20 mm
	25							25 mm
	32							32 mm
	40							40 mm
	50							50 mm
	65							65 mm
	80							80 mm
	100							100 mm
	125							125 mm
	150							150 mm
	200							200 mm
Type		N						Sensor type: +12V or 24V power, output 3 wire system pulse signal
		A						Transmitter type: +24V power, output 2 wire 4-20 mA
		B						Smart type: lithium cell, local indicator, without signal output
		C						Smart type: +24V power, local indicator, 2 wire 4-20mA/pulse output
		C1						Smart type: +24V power, local indicator, RS485 communication
								protocol
		C2						Smart type: +24V power, local indicator, HART protocol
Accuracy			05					0.5
			10					1.0
			02					0.2 (Special order, long delivery time)
Range				W				Extended Measuring Range
Range				S				Standard Measuring Range
Body Material					S			304 SS
Body Material					L			316 (L) SS
Explosion Proof						N		Non Explosion proof
Explosion Proof						E		Explosion proof, ExdIIBT6
Pressure Rating							N	Normal
Pressure Rating							H (x)	High Pressure

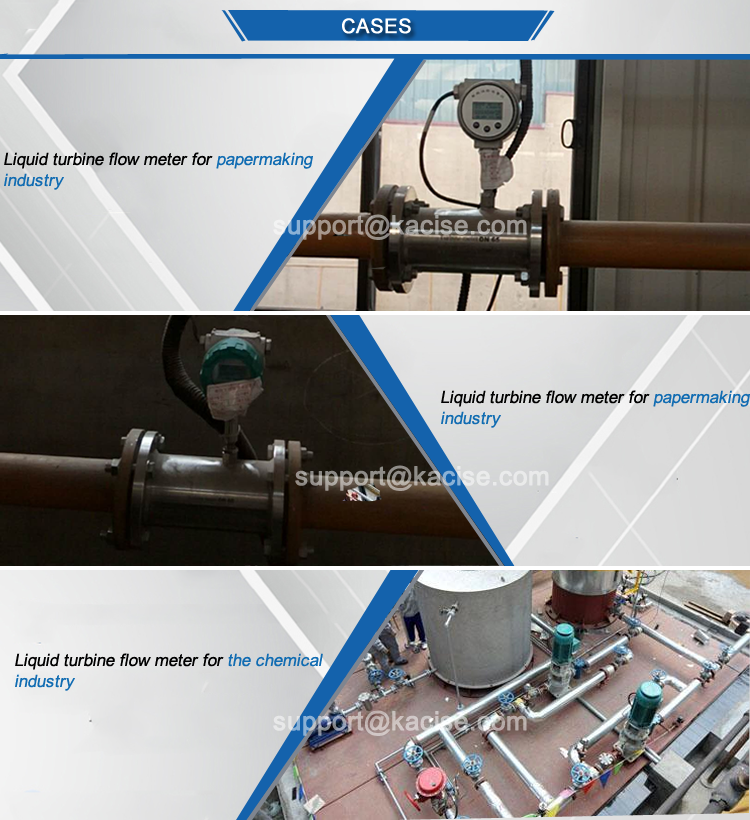

Application
