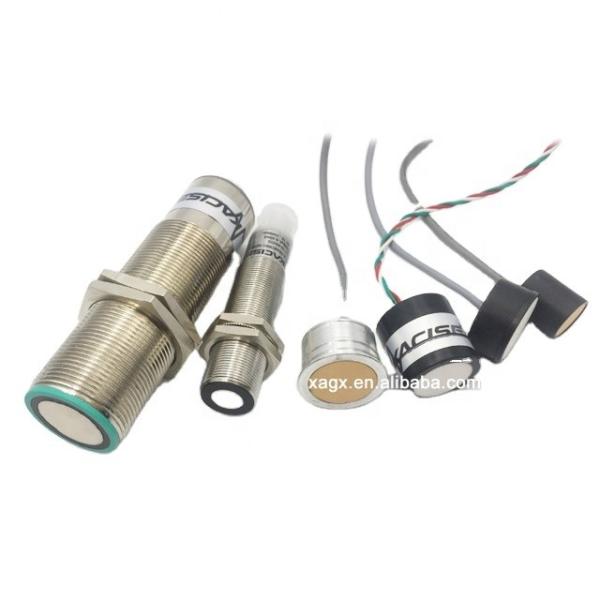

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC or stainless steel housing, designed to meet IP67 water intrusion. The power 13V-30V operation detects objects from 0.1meters to 10meters and provides sonar range information from 0.25meters out to 10meters out with 0.001meters or 0.01meters resolution. The interface output formats included are pulse width output, analog voltage output, NPN/PNP output and serial digital output.

Dimensions:(unit:mm)

Features

. Designed for outdoor or indoor environments

. High sensitivity

. Readings can occur up to every 33mS(30Hz) within 3meters or occur up to every 80ms(12.5Hz) within 10meters.

. Free run operation can continually measure and output ranger information

. 13V-30V supply with very low average current draw

. Multi-kind output type such as analog (40-20mA, 0/1-5V, 0/1-10V), RS485, Can bus.

. Sensor operates at 125K

Applications

.Tank level measurement

. Bin level measurement

. Proximity zone detection

. People detection

. Robot ranging sensor

. Autonomous navigation

. Multi-sensors navigation

. Distance measuring

. Long range object detection

. Industrial sensor

Package and accessories information

2 units are in box and all boxes are packed in standard packages or customers requests available. Each body of the ultrasonic is shield by foam. The dimensions of the box is 130mm*130mm*42mm.

The accessories are as follows:

a, 2 meters length cable

b, 2 nuts for fixing the sensor

Ordering information

GX_US_AAA-BBB-CCC-DDD-EEE

AAA: the material and diameter of the body

P18- the plastic body and diameter of the body is 18mm

S18 - the stainless steel body and diameter of the body is 18mm

P30- the plastic body and diameter of the body is 30mm

S30 - the stainless steel body and diameter of the body is 30mm

BBB: distance range

003-30cm 005-50cm

010-100cm 030-300cm

060-600cm Others Reserved

CCC: Interface Type

0V5-Analog 0-5V

1V5- Analog 1-5V

0VA- Analog 0-10V

1VA- Analog 1-10V

4MA- Analog 4-20mA

SER-RS485 interface

CAN-Can bus interface

PUL-PUL pulse

PMP-PMP pulse

NON-NPN switch

PNP-PNP switch

Others-Reserved

DDD: cable connection method

Fix-fixed cable

M12-M12 connection socket

EEE: cable length

XXX-description the cable length, the cable length should less than 15m, the number should less than 150

e.g. GX_US_S30-700-SER-FIX-080
