Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor

    Buy cheap Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor from wholesalers

    Buy cheap Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor from wholesalers
    • Buy cheap Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor from wholesalers
    • Buy cheap Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor from wholesalers
    • Buy cheap Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor from wholesalers
    • Buy cheap Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor from wholesalers

    Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor

    Ask Lasest Price
    Model Number : KUM
    Brand Name : KACISE
    Supply Ability : 2000 Piece/Pieces per Month
    Price : $200.00/pieces >=1 pieces
    Certification : CE
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor

    Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor

    Brief introduction of Ultrasonic Waste Water Level Sensor

    Our Ultrasonic Waste Water Level Sensor and Underground Tank Level Sensor are highly advanced and reliable measurement devices. These sensors are designed with cutting - edge ultrasonic technology.
    For the Ultrasonic Waste Water Level Sensor, it is specifically engineered to accurately measure the level of waste water. It can be installed in various waste water treatment facilities, providing real - time data that is crucial for effective waste water management. With its high - precision sensing capabilities, it ensures that the waste water level is constantly monitored within the required range, preventing overflows and other potential issues.
    The Underground Tank Level Sensor is an ideal solution for monitoring the liquid level in underground tanks. It is suitable for different types of liquids stored in these tanks, such as fuel, water, or chemical substances. Its robust design allows it to withstand the harsh underground environment, and the ultrasonic principle guarantees accurate and stable level measurements, enabling users to manage and control the tank's contents with confidence.

    Features of long range Ultrasonic Waste Water Level Sensor

    • High sensitivity
    • Non-contact
    • Designed for outdoor or indoor environments
    • 9V-28V supply with very low average current draw
    • Sensor operates at 40 KHz, 112 KHz, 175 KHz, 300 KHz, 1 MHz
    • Free run operation can continually measure and output ranger information
    • Multi-kind output type such as analog (40-20mA, 0/1-5V, 0/1-10V), RS485, Can bus.
    • Readings can occur up to every 33mS(30Hz) within 3meters or occur up to every 80ms(12.5Hz) within 10meters.

    KUM series

    Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor

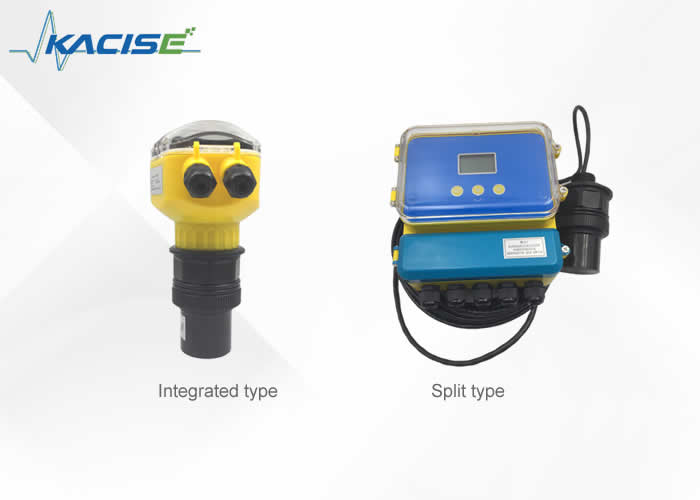

    Function Integrated type Split type
    Range 5m,10m,15m,20m,30m,40m,50m,60m 5m,10m,15m,20m,30m,40m,50m,60m,70m,
    Accuracy 1% 1%
    Resolution 3mm or 0.1%(bigger) 3mm or 0.1%(bigger)
    Display Chinese and English LED Chinese and English LED
    Analog Output

    Four-wire 4~20mA/510Ωload

    Two-wire 4~20mA/250Ω load

    4~20mA/510Ωload

    Relay Output

    Two groups:

    AC 250V/ 8A or DC 30V/ 5A

    Status can be programmed

    Two groups for single channel

    Four groups for double channels

    AC 250V/ 8A or DC 30V/ 5A

    Status can be programmed

    Power supply

    Standard:24VDC

    Optional: 220V AC+15% 50Hz

    Standard:220V AC+15% 50Hz

    Optional:24VDC or 120mA

    Customize:12VDC or battery

    Environment

    Temperature

    LED : -20~+60℃,

    Probe : 20~+80℃

    LED : -20~+60℃,

    Probe : 20~+80℃

    Communication

    Option:485,232 Communication

    (manufactures agreement)

    Option:485,232 Communication

    (manufactures agreement)

    Protection Grade

    LED: IP65,

    Probe: IP68

    LED: IP65,

    Probe: IP68

    Cable Probe No standars:10m longest:100m
    Probe installation According to the range and the probe type According to the range and the probe type

    Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor

    Function Integral type
    Moasuroment range 5m,10m
    Measurement accuracy 0.5%~1%
    resolution 3mm or 0.1% ( which is bigger)
    display English LCD
    Analog output: 2 wires 4~20mA
    Power supply 24VDC
    Environment temperature

    Display instrument-20~+60℃,

    transducer-20~+80℃

    Protection grade Display instrument IP65. transducer IP68
    transducer cable no
    Transducer installation According to the range and transducer select
    Probe type

    There are 6 type probes now and also there are 3 types under development.

    Type1:PVDF

    Type2: aluminium alloy

    Type3:ABS

    Type4: stainless steel 316

    Type5: Teflon

    Type6: titanium alloy

    We suggest the customer describe the application field in detail, such as the media type, the pressure surrounded, the temperature and humidity. Our engineer will choose you the proper probe.

    Product folw

    Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor

    Application

    Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor

    Company Information

    Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor

    Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

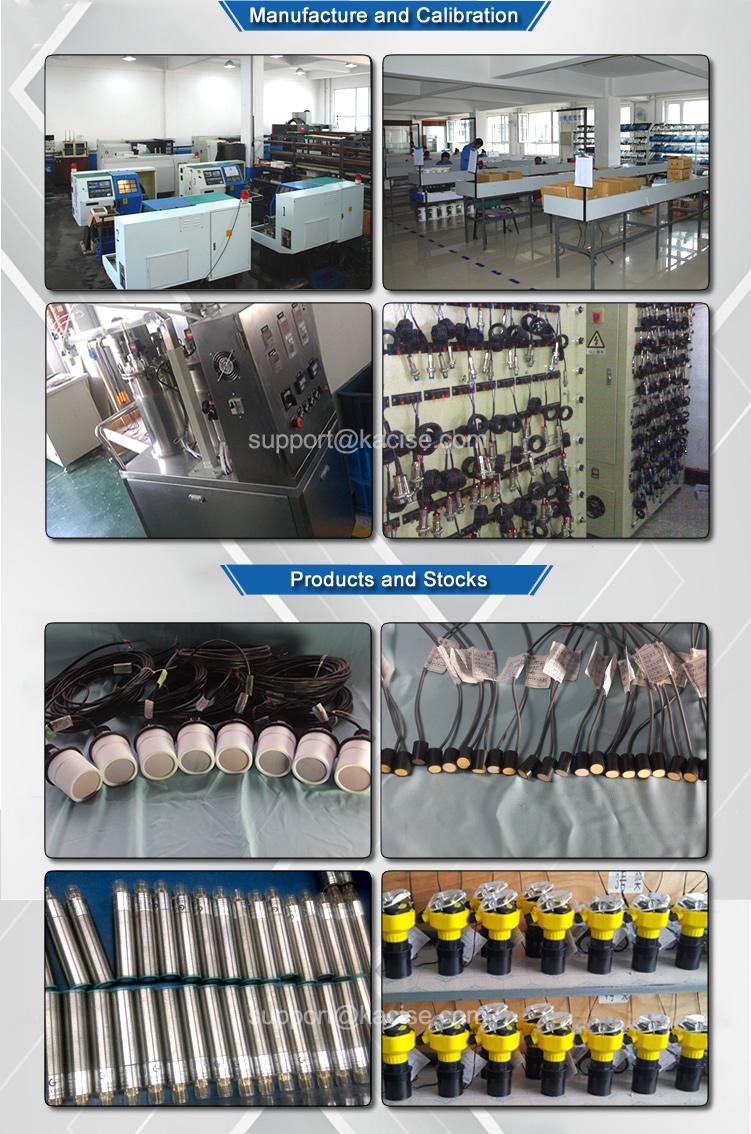

    We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

    Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

    We supply high quality Turbine Flow Meter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.

    Our Services

    • Your inquiry will be replied in 24hours.
    • Well-trained and experienced staffs to answer all your enquires in fluent English.
    • OEM&ODM, we can help you to design and your request will be put into product.
    • Distributorship are offered for your unique design and some our current models.
    • Protection of your sales area, ideas of design and all your private information.
    • Discounts are offered based on order quantities.

    FAQ

    1. Q: What information need to be provided to choose the suitable Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor?

    A: Please provide us: measuring range,medium,power supply,output, so we can choose model and quote for you quickly.

    2. Q: Are you a trade company or a manufacturer?

    A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

    OEM & ODM service are available. Welcome to visit us.

    3. Q: What is your MOQ?

    A: To start our cooperation, sample order is acceptable.

    4. Q: What is your delivery date?

    A: The delivery date is about 3-15 working days after receipt of payment.

    5. Q: What is your payment terms?

    A: We support T/T, PayPal and Trade Assurance.

    For mass production order, it is 30% deposit in advance and 70% balance before shipment.

    6. Q: What is Trade Assurance payment method:

    A: It’s a free service which can protect your orders from payment to delivery.

    And we now have USD104,000.00 of caution money to assure your orders.

    7. Q: Do you have a warranty?

    A: Yes, we have the warranty of 12 months.
