KSQA11 Industrial acceleration sensor Operating Temperature -45 ~ +100(℃)

    Buy cheap KSQA11 Industrial acceleration sensor Operating Temperature -45 ~ +100(℃) from wholesalers

    Buy cheap KSQA11 Industrial acceleration sensor Operating Temperature -45 ~ +100(℃) from wholesalers
    • Buy cheap KSQA11 Industrial acceleration sensor Operating Temperature -45 ~ +100(℃) from wholesalers
    • Buy cheap KSQA11 Industrial acceleration sensor Operating Temperature -45 ~ +100(℃) from wholesalers
    • Buy cheap KSQA11 Industrial acceleration sensor Operating Temperature -45 ~ +100(℃) from wholesalers

    KSQA11 Industrial acceleration sensor Operating Temperature -45 ~ +100(℃)

    Ask Lasest Price
    Brand Name : Kacise
    Model Number : KSQA11
    Certification : certificate of explosion-proof, CE
    Delivery Time : 5-8 working days
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000 Pieces per Week
    • Product Details
    • Company Profile

    KSQA11 Industrial acceleration sensor Operating Temperature -45 ~ +100(℃)

    Product Description:

    The KSQA11 Quartz Accelerometer is seamlessly integrated into the oil and gas sector, offering superior anti-shock performance and resilience to high temperatures. Its reliable functionality transcends traditional applications in aviation and aerospace inertial tests, extending to encompass both static and dynamic acceleration measurements. Widely embraced in aerospace for inertial navigation and guidance, as well as in industrial measurement scenarios, it is a cornerstone technology for measurement-while-drilling (MWD) operations in oil and gas fields.

    Product Feature:


    ● Small size and light weight

    ● Analog output

    ● Excellent index repeatability

    ● Shock and vibration resistance

    ● Wide load resistance range

    ● Square precision mounting flanges

    ● Wide temperature range

    Performance Characteristics:


    PerformanceKSQA11
    Input Range (g)±30
    Bias (mg)≤8
    Temperature Sensitivity (μg/℃)≤40
    One-month Composite Repeatability (1σ) (μg)≤50
    Scale Factor (mA/g)1.0 ~ 1.6
    Temperature Sensitivity (10-6/℃)≤80
    One-month Composite Repeatability (1σ) (10-6)≤80
    Linearity (μg/g2)≤40
    Input Voltage (V)±12 ~ ±18
    Operating Temperature (℃)-45 ~ +100
    Size (mm)Ø25×25
    Weight (g)≤50

    Outline:


    KSQA11 Industrial acceleration sensor Operating Temperature -45 ~ +100(℃)KSQA11 Industrial acceleration sensor Operating Temperature -45 ~ +100(℃)

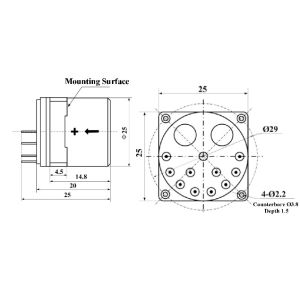

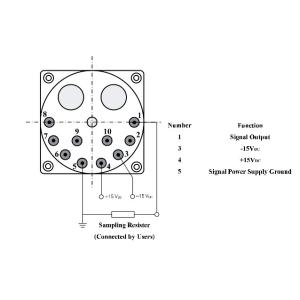

    KSQA11 Configuration DrawingsKSQA11 Pin & Wiring Diagram
    Environment
    Vibration Peak Sine25g@30Hz ~ 500Hz
    Shock500g, half-sine, 1ms ~ 3ms
    Storage Temperature-55℃ ~ +80℃

    Applications:

    The Kacise KSQA11 Accelerometer Sensor is a revolutionary gravity force monitor, linear acceleration meter and accelerometer detector. It is designed to detect and measure the acceleration of motion, vibration and shock with a size of Ø25×25(mm). It is certified with a certificate of explosion-proof and CE, and each unit has individual box and all boxes are packed in standard packages or customers requests available. The minimum order quantity is 1pcs. And the delivery time is 5-8 working days.

    The Kacise KSQA11 Accelerometer Sensor has a shock rating of 100g, Half-sine, 8ms ~ 12ms and a weight of ≤50(g). It features a scale factor of 1.0 ~ 1.6(mA/g) and a bias of ≤8mg. It is suitable for various applications such as automotive, aerospace, industrial, energy, marine, medical, robotics, and consumer electronics.

    The Kacise KSQA11 Accelerometer Sensor is reliable and durable, and it is able to provide accurate measurements in harsh conditions. With its advanced technology, it is able to detect subtle changes in gravity force, linear acceleration and accelerometer. It can be used in various applications including automotive, aerospace, industrial, energy, marine, medical, robotics, and consumer electronics.

    The Kacise KSQA11 Accelerometer Sensor is available at a competitive price, and the payment terms are T/T, Western Union, MoneyGram. It has a supply ability of 1000 Pieces per Week. It is an ideal choice for those who need an efficient and reliable gravity force monitor, linear acceleration meter and accelerometer detector.

    Support and Services:

    Accelerometer Sensor Technical Support and Service

    • Provide technical advice and troubleshooting guidance for product use
    • Provide product feature and function instruction
    • Provide software and firmware updates
    • Provide product replacement service
    • Answer product related general inquiries
    • Provide product technical training

    Packing and Shipping:

    Packaging and Shipping for Accelerometer Sensor

    The Accelerometer Sensor is packaged in a single box or multiple boxes, depending on order size. The box is made of corrugated cardboard and includes all necessary packing materials to ensure the product arrives safely. The box should be marked with the product name, weight, and address of the recipient.

    The product is shipped with a reputable courier or postal service, with tracking available. All orders are tracked and insured against loss or damage. The customer is notified when the product is shipped and has been delivered.
