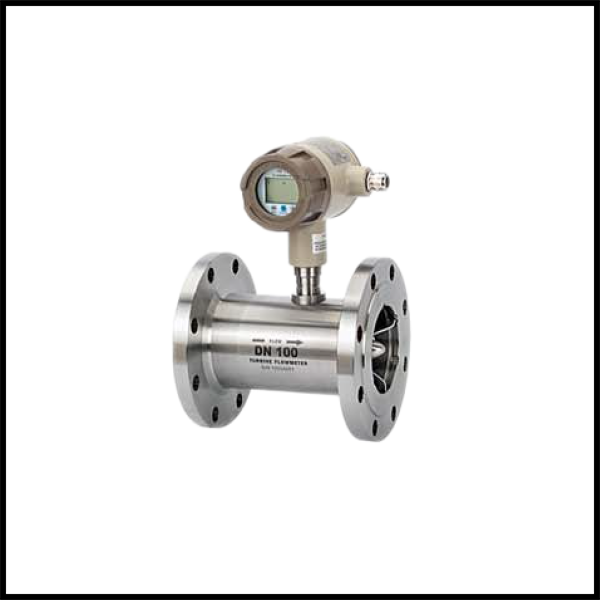

Turbine flow meter is the use of advanced low-power single-chip
microprocessor technology developed turbine flow sensor and display
totalizer integration of new smart meter, with a compact structure,
intuitive readings clear, high reliability, without outside power
interference, anti-lightning, obvious low cost advantage, it is
widely used to measure the closed pipe and stainless steel
1Cr18Ni9Ti, 2Cr13 and corundum Al2O3, carbide not corrode, and no
fibers, particles and other impurities, kinematic viscosity at
operating temperature is less than 5 × 10-6m² / s of liquid, for
kinematic viscosity more than 5 × 10-6m² / s of liquid, can be
quantitative control, excessive alarm, etc., is an ideal flow
metering and energy meter.
Measurement objects: oil, organic liquids, inorganic liquid,
liquefied petroleum gas, natural gas, coal gas and cryogenic
fluids.
Features
Features of diesel flow meter
High accuracy, generally up to ±1%R, ±0.5%R, high accuracy up to
0.2%R
Good repeatability, short-term repeatability up to 0.05%~0.2%, in
the trade settlement is the preferred choice of flow meter.
Output pulse frequency signal, no zero drift and strong
anti-interference ability.
High frequency signal(3~4KHz) can be obtained, the signal
resolution is strong.
Wide range, medium and large diameter up to 1:20, small caliber
1:10.
Can be customized, for example Low temperature type, Bi-Directional
type, Mixed sand type and Underground type etc.
Can be made into an insert type, suitable for large diameter
measurement, the pressure loss is small, the price is low, take it
out with not cut off the liquid.
Applications
Applicationsof peak flow meter
Liquefied petroleum gas, refined oil and light crude oil transport
and gathering stations, the first and terminal station of large
crude oil pipeline for trade settlement.
Widely used in petroleum, chemical, metallurgy, paper and other
industries to measure the volume of liquid flow and total volume.
Specifications
Specifications of remote peak oil diesel turbine flow meter
Paremeter
Value
Unit
Diameter
Thread
4, 6, 10, 15, 20, 25, 32, 40, 50, 65, 80
mm
Flange(Clamp)
15, 20, 25, 32, 40, 50, 65, 80, 100, 125,150, 200
mm
Insertion
150, 200, 250, 300, 350, 400, 500~1100
mm
Accuracy
±1, ±0.5, ±0.2(customized)
%R
Range ratio
1:10, 1:15, 1:20
Sensor material
304, 316(L) stainless steel etc.
Working
environment
Medium temp.
-20~120
°C
Ambient temp
-20~60
°C
Relative humidity
5%~90%
Atmospheric pressure
86~106
KPa
Signal output
Pulse,4~20mA
Comm interface
RS485,HART etc.
Power supply
Externalpower
+24+15%,Ripple ≤±5%,
Applying to 4~20mA,Pulse,RS485
VDC
Internal power
1 group 3.0V10AH lithium battery,
working voltage 2.0~3.0V
Signal line
interface
Basic type
Houseman connector or own three-core cable
Explosion proof type
Internal thread M20×1.5
Explosive-proof grade
ExiaIICT4 or ExdIIBT6
Protection level
IP65 or higher(customized)
Diameter flow comparison table
Diameter(mm)
Standard Range (m3/h)
Extended Range(m3/h)
4
0.04~0.25
0.04~0.4
6
0.1~0.6
0.06~0.6
10
0.2~1.2
0.15~1.5
15
0.6~6
0.4~8
20
0.8~8
0.45~9
25
1~10
0.5~10
32
1.5~15
0.8~15
40
2~20
1~20
50
4~40
2~40
65
7~70
4~70
80
10~100
5~100
100
20~200
10~200
125
25~250
13~250
150
30~300
15~300
200
80~800
40~800
According to customer demand, we can customize the corresponding
parameters.
Product
GXTFM-R remote diesel flow meter
The site itself does not have a display function, only the flow of
remote signal output, signal flow can be divided into pulse signal
and current signal, Especially suitable for the secondary display
instruments, PLC, DCS and other control systems with the computer.
Parameter
Value
Power supply
24VDC±15%
(Ripply≤5%, Power waste<0.5W)
Input signal frequency range
0~3000Hz
4-20mA output
Load capacity
≤600Ω
Pulse output
Load capacity
>1100Ω
High/Low level amplitude
>22V / <0.8V
Pulse width
1/2fin×1000(ms)
GXTFM-S smart integrated display oil flow meter
The site itself with field display function, the flow signal can be
remote output, two display units available, multiple electrical
signal output mode optional.
Parameter
Value
Power supply
External power
24VDC±15%
(Ripply≤5%, Power waste<0.5W)
Internal Power
3VDClithium battery
(working voltage 2.0V~3.0V,Sustainable work for more than 12 months)
Input signal frequency range
0~3000Hz
Pulse output
Load capacity
>1100Ω
High/Low level amplitude
>22V / <0.8V
Pulse width
1/2fin×1000(ms)
Current output
Load capacity
≤900Ω
Two-wire
4-20mA
Three-wire
0-20mA
Communication interface
RS485, Using MODBUS
GXTFM-L low power peak flow meter
Backlit dot matrix LCD display, full English display, power waste
low, multiple display units are available and multiple electrical
signal output mode optional.
Parameter
Value
Power supply
External power
24VDC±15%
(Ripply≤5%, power waste<0.5W)
Internal power
3.6VDClithium battery
(working voltage 2.3V~3.6V,Sustainable work for more than 12 months)
Input signal frequency range
0~3000Hz
Pulse output
Load capacity
>1100Ω
High/Low level amplitude
>22V / <0.8V
Pulse width
1/2fin×1000(ms)
Current output
Load capacity
≤880Ω
Two-wire
4-20mA
Three-wire
4-20mA
Communication interface
RS485, Using MODBUS

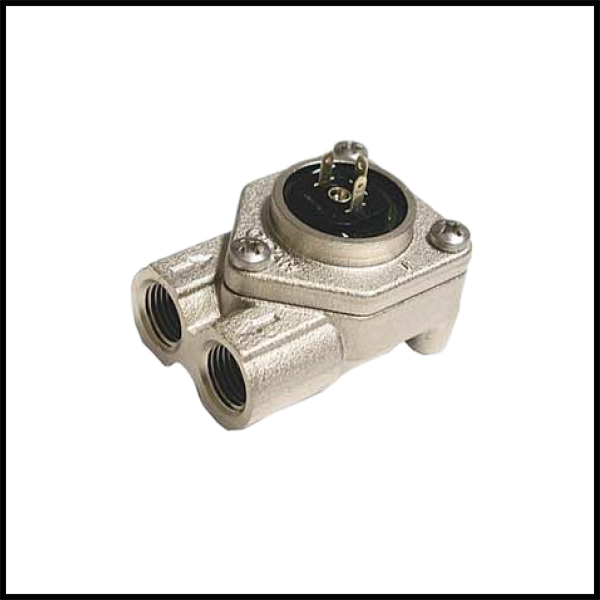

GXTFM-M Mini diesel fuel turbine flow meter
Repeatability ±0.25% has strong corrosion resistance, suitable for
high temperature, high pressure and harsh environments.
Parameter
Value
Range
Diameter(mm)
Measuring range(L/min)
Meter factor (cm3/imp)
1.15
0.035~1.60
0.50
1.30
0.010~1.86
0.60
1.50
0.045~2.08
0.67
2.00
0.085~2.32
1.02
2.50
0.120~2.40
1.44
3.70
0.150~3.00
2.28
Max pressure
20.0bar
Pressure lose
2.0bar
Temp. range
-10°C/+100°C
Accuracy level
±1%
Pipe connection
G1/4 Internal thread(Customizable)
Installation mode
Horizontal installation
Dimension(L×B×H)
55×40×47mm
Weight
About 300g
Certification
NSF,CE
