200Kbs Ultrasonic Transducer Sensor Waterproof Wireless Ultrasonic
Level Sensor

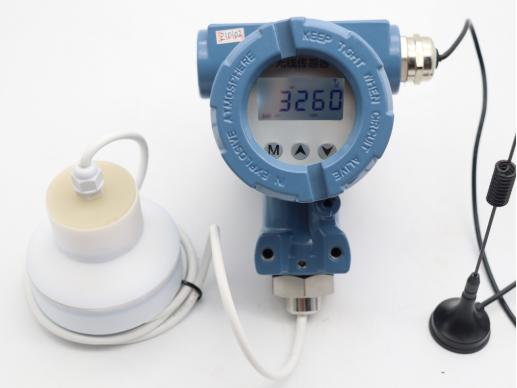

KUS650 series intelligent wireless digital wireless liquid
level/level sensor is an intelligent digital display product with
high precision and high stability introduced by our company.
Suitable for real-time measurement and display of liquid
level/material level. This product adopts special wide temperature
liquid crystal display, high stability sensor, and is carefully
manufactured through precise digital temperature compensation and
nonlinear correction technology to ensure the high precision and
high stability of liquid level/level measurement. The built-in
wireless module uses the network to provide users with wireless
long-distance and low-power data transmission, and sends all the
status data of the sensor to the cloud background management server
in real time to realize alarm linkage and data statistical analysis
with the smart cloud platform.
Application field
• Fire water system.
• City water supply.
• Sewage treatment.
• Long distance heating supply.
• Food industry.
• power chemical or oil industry.
Parameters
| Parameter | Description |
| Battery | 2 DC3.6VDisposable lithium-ion batteries. |
| Wireless transmitting power | ＜23 dBm |
| receive sensitivity | ＜-135 dBm |
| Band width | 200Kbs |
| Alarm transfer | supported |
| LCD multi para-indicator | -30℃～80℃,and support level, alarm, status indicator. |
| Key board | 3-key for parameter setting |
| Process part material | PEFE PVDF |
| Auto alarm report | Support |
| Smart cloud platform | support |
| level range | 20-15000mm |
| accuracy | 0.5%F.S or 5mm |
| Working environment temperature | -10℃～70℃ |
Precautions:
1. If you need to calibrate the instrument, please contact our
company. Non-professionals are not allowed to calibrate the
instrument.
2. When calibrating the watch, please turn on the watch first, and
then calibrate after 1 hour of constant temperature.
Storage and transportation
1. The product should be stored at -40℃~+80℃, relative humidity not
more than 90%, ventilated, dry and non-corrosive gas warehouse.
2. The product, the certificate of conformity and the instruction
manual are packed in one package, and strong collision is strictly
prohibited during transportation.
Note: The contents of the manual are subject to change without
prior notice, please pay attention to keep in touch.
