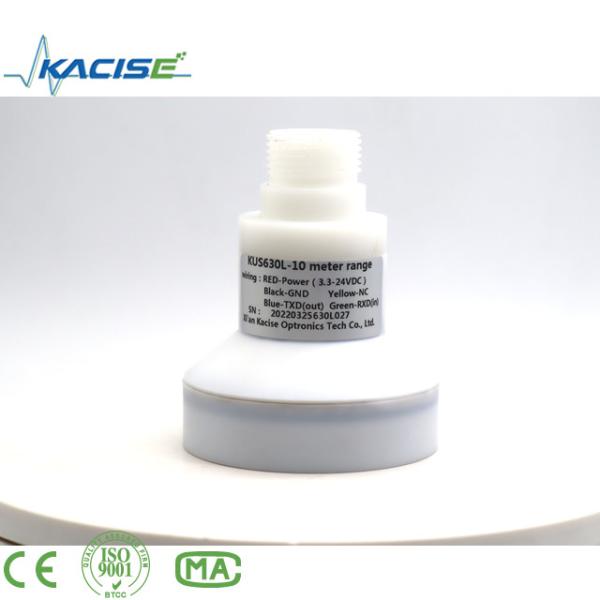

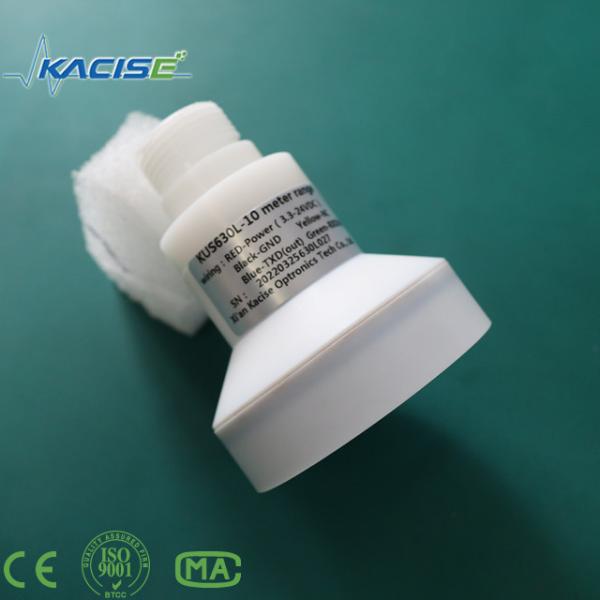

KUS630 Series Ultrasonic Transducer Sensor 24 VDC IP68 Protection
Product parameters
| 型号:KUS630 |
| Measuring range | 0.6m... 10m |
Blind spot | 0 ... 0.6m(Unstable working area is within 0.6m, it is not
recommended to work in this range); the minimum blind area version
of 0.3m can be achieved, which needs to be customized. |
| Supply voltage | 3.3 ... 24 V DC , ripple 10 %SS |
Working current | ≤ 45 mA (fastest measurement speed) Low-power version, sleep power consumption is less than 0.3mA,
sending power consumption is 20mA (less than 2ms), and receiving
power consumption is not more than 8mA (less than 150ms) |
Output signal | 1:Programmable analog output 0-10V. 2:RS485 output. 3:Uart serial output 4:4-20mA output 5:Switch output |
| Measurement accuracy | ≤1 % |
| Temperature compensatin | yes |
working conditions
| Working temperature | -25…70℃(248...343K) |
| Storage temperature | -40…85℃(233...358K) |
Little knowledge of liquid level gauge
Ultrasonic level gauge is a digital level instrument. The distance
between the sensor and the surface of the liquid being measured is
calculated from the time between the emission and reception of the
sound waves. Using non-contact measurement, it can be widely used
to measure the height of liquid and solid materials.
Dimensions
Unit in the diagram is mm
Electrical connections and signal definitions
| Line order | Colour | Definition |
| 1 | Red | Power is positive |
| 2 | Black | power return ground |
| 3 | Yellow | Analog output, voltage output, current output switch output |
| 4 | Blue | RS485 A+ or uart TXD |
| 5 | Green | RS485 B- or uart RXD |
Precautions:
1. If you need to calibrate the meter, please contact our company.
Non-professionals are not allowed to calibrate the meter.
2. When calibrating the meter, please turn on the meter first, and
calibrate it after 1 hour of constant temperature.
