KUS600 5 Meter RS485 Low Power Level Measurement Sensor IP68

Ask Lasest Price
Brand Name :	Kacise
Model Number :	KUS600
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	100+
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

KUS600 5 Meter RS485 Low Power Level Measurement Sensor IP68

KUS600 Series Ultrasonic Sensor

1. Features

Non-contact measurement
PVDF casing for corrosion environment
Low power consumption solution
Various output options, wide voltage power supply

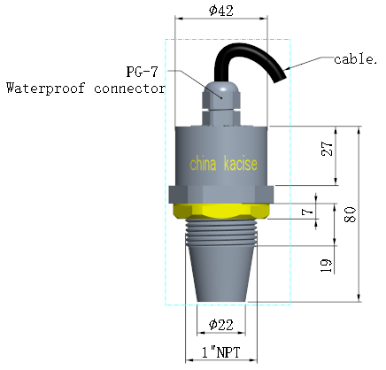

2. Dimension
Unit in the diagram is mm.

3. Electronic interface and signals definition

Wire color	Pin	Description	Note
Red	1	Power supply	3.3V-24V
Black	2	GND
Yellow	3	Analogue output	Low power version hasn’t analogue output
Blue	4	RS485A+
Green	5	RS485B-

4. Parameter

Model:KUS600
Range	0.6m-5m, low-power product supports wide voltage input, this range is for 3.3V power supply (6m range customizable)
Unusable area	0 ...0.6m
Power supply	3.3V-24V
Power consumption	less than 0.3mA when sleep, less than 20mA when emitting, less than 5mA than when measurement
Output signal	0-5V /4-20mA/NPN/PNP/RS485
Electrical connection	5-core cable (analog), 6-core cable (switch)
Ranging resolution	1mm
Measurement accuracy	0.5%-1 %F.S.
Temp. compensation	Yes
Working temperature	-25…70℃(233...358K)
Storage temperature	-40…85℃(233...358K)
Protection class	IP68
Casing Material	PVDF

5.Installation conditions
If the sensor is installed at the environment temperature fall below 0℃, it should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the nuts, it has to be fixed at the middle of the housing thread.

6. Ordering information

KUS	Body size	Output		Max range	Description
	600
	Customized	Customized
		4-20mA	4-20mA mode output with RS485 MODBUS protocol
		0-3.3V	The power supply range is 3.3 at least
		0-5.0V	The power supply range is 5.0 at least
		RS485	Power save mode with RS485 MODBUS protocol
			XX m		XX m is the maxim range can be detected, the default length is 1 meter
KUS	600	RS485	3m

7.PVDF Corrosion Resistance Data Sheet

Medium	Concentration%	Maximum operating temperature℃	Medium	Concentration%	Maximum operating temperature℃
sulfuric acid	＜10	85	Oxalic acid	—	60
—	＜60	85	citric acid	—	85
—	80-93	80	benzoic acid	—	85
—	98	65	Benzoic acid	—	50
Cresyl acid	50	60	acid	—	60
nitric acid	＜10	85	salicylic acid	—	85
—	＜50	50	sodium hydroxide	＜50	75
—	70-90	25	Calcium hydroxide	—	85
glycolic acid	—	25	ammonium sulfate	—	85
hydrochloric acid	—	85	ammonium nitrate	—	85
phosphoric acid	＜85	85	Toluene	—	75
—	＞85	85	Ethylbenzene	—	50
hydrofluoric acid	40	85	Isopropionic acid	—	60
Hydroiodic acid	含12%以上	85	fatty acid	—	85
formic acid	—	85	Hydroxy acid	—	50
Acetic acid	＜50	85	calcium chloride	—	85
—	80	65	Ammonium acetate	—	80
ice	—	50	ammonia	—	85
propionic acid	—	85	sodium sulfate	—	85
oxalic acid	—	85	Aluminum nitrate	—	85
butyric acid	—	50	Sulfite	—	85
Hydrocyanic acid	—	85	sodium benzoate	—	85
Sulfurous acid	—	85	sodium bicarbonate	—	85
Nitrous acid	—	70	magnesium carbonate	—	85
carbonic acid	—	85	Ferrous chloride	—	85
hypochlorous acid	—	60	benzene	—	85
Methanesulfonic acid	—	85	cresol	—	65
Benzenesulfonic acid	—	40	fluorine	干或湿	20
malic acid	—	85	iodine	液	65
