RS485 output 15m wireless water level sensor

Ask Lasest Price
Brand Name :	Kacise
Model Number :	KUS630
Certification :	certificate of explosion-proof, CE
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :	10000 Pieces per month
Delivery Time :	5 work days

Add to Cart

Product Details
Company Profile

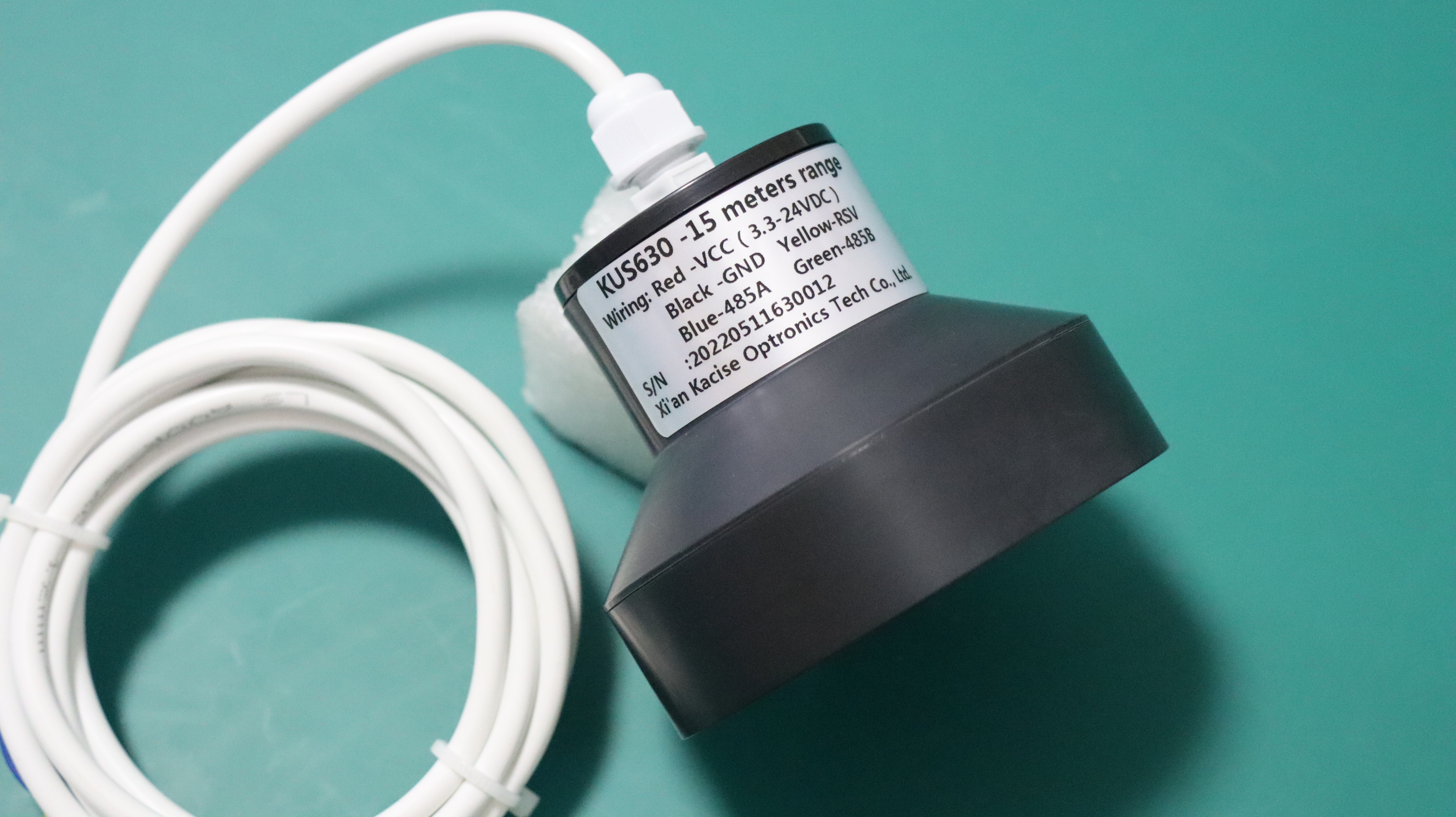

RS485 output 15m wireless water level sensor

RS485 output 15m wireless water level sensor

Product Description

The RS485 output 15m wireless water level sensor is an advanced and highly efficient device designed for precise water level monitoring. With an impressive 15 - meter measurement range, it can cover a wide variety of applications, from large industrial water tanks to natural water bodies such as reservoirs and lakes.

The RS485 output feature enables seamless integration with existing control systems, allowing for easy data transmission and analysis. This makes it possible to connect multiple sensors in a network for comprehensive water level management. The wireless functionality is a significant advantage, eliminating the need for cumbersome wiring. It provides flexibility in installation, reducing installation time and costs. This sensor is built with high - quality materials to ensure durability and reliable performance even in harsh environmental conditions. It offers accurate and real - time water level data, which is crucial for preventing overflows, optimizing water usage, and ensuring the safety of water - related infrastructure.

RS485 output 15m wireless water level sensor

Product features

High sensitivity.
Compact and robust structure.
IP68 high protection rating.
Corrosion resistant casing, suitable for corrosive medium and application

Application

RS485 output 15m wireless water level sensor

Overall Size

The unit is mm.

RS485 output 15m wireless water level sensor

Parameters

Model:KUS630
Measuring range	600... 15000 mm
Blind area	0 ... 600 mm(less than 600mm is an unstable work area, it is not recommended to work in this range);there is a 300mm blind zone version that can be customized.
Power supply	3.3 ... 30 V DC , ripple 10 %SS
Working current	≤ 45 mA(maximum measurement speed) Low-power version: the hibernation power is less than]0.3mA, the transmit power is less than 20mA (less than 2ms), and the receive power is less than 5mA(less than 150ms).
Output	1 Programmable analog output 0-10V. 2 RS485 output. 3 UART serial port output 4 .4-20mA output 5.Switch output
Accuracy	≤1 %
Temperature compensation	yes

The working conditions

Operating temperature	-25…70℃(248...343K)
Storage temperature	-40…85℃(233...358K)

Other instructions

Electrical connection	5-wire cable
Protection grade	IP68
Material Housing	PTFE/PVC

Electrical Connection and Signal Definition

Pin	Color	Define
1	red	Power positive
2	black	Power return ground
3	yellow	Analog output,voltage output,current output switching value output
4	blue	RS485 A+ or UART TXD
5	green	RS485 B- or UARTRXD
