Refrigeration Industrial Precision Pressure Sensor GXPS353 With CE Certification

    Buy cheap Refrigeration Industrial Precision Pressure Sensor GXPS353 With CE Certification from wholesalers

    Buy cheap Refrigeration Industrial Precision Pressure Sensor GXPS353 With CE Certification from wholesalers
    • Buy cheap Refrigeration Industrial Precision Pressure Sensor GXPS353 With CE Certification from wholesalers
    • Buy cheap Refrigeration Industrial Precision Pressure Sensor GXPS353 With CE Certification from wholesalers
    • Buy cheap Refrigeration Industrial Precision Pressure Sensor GXPS353 With CE Certification from wholesalers
    • Buy cheap Refrigeration Industrial Precision Pressure Sensor GXPS353 With CE Certification from wholesalers

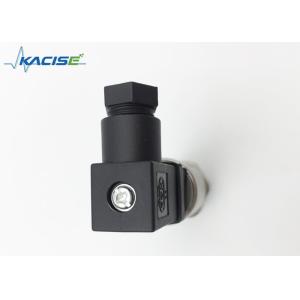

    Refrigeration Industrial Precision Pressure Sensor GXPS353 With CE Certification

    Ask Lasest Price
    Brand Name : KACISE
    Model Number : GXPS353
    Price : $80.00 - $299.00 / Pieces
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000 Piece/Pieces per Week negotiable
    Delivery Time : 5-8 work days
    Certification : CE
    • Product Details
    • Company Profile

    Refrigeration Industrial Precision Pressure Sensor GXPS353 With CE Certification


    Introduction


    GXPS353 series pressure transmitter is a high-volume, low cost OEM, civil & industrial use, high-quality, high-reliability products. Small size, light weight, compact structure, and widely used in the scene of the compressor, automobile, air conditioning, etc. pressure measurement. The product is made of high quality stainless steel structure, pressure core and sensor chips are imported from Germany, tuning and digital compensation techniques, and by the intrinsically safe certification and CE certification.Standard voltage current output mode.


    Specification


    Spec.Value
    Pressure range0~2bar ......600bar
    Load pressure1.5times nominal value pressure (1.5X)
    Rupture pressure3times nominal value pressure (3X)
    Accuracy±0.25%F.S, ±0.5%F.S, ±1.0%F.S
    StabilityTypical value 0.5%F.S, Max. value: 1%F.S
    Operating temperature-40°C~125°C
    Storage temp.-40~120℃
    Compensation temperature-10°C~ 80°C
    Medium compatibilityAll Caustic Medium Compatible with 1Cr18Ni9Ti
    Electrical performance2 wire system3 wire system
    Output signal4~20mA0.5~4.5V
    Power supply10~30Vdc5Vdc10~30Vdc
    Load pressure(U-10)/0.02(Ω)>100kΩ
    Insulation>100M Ω@50V
    Electric strength500V@60 second
    Vibration/Impact10g/5~2000Hz, axes X/Y/Z20g sine 11ms
    Pressure durable2×106pressure circle @25°C
    Electrical connectionPackard, Hirsmann , air plugs, fixed cable, water proof cable
    Pressure portG1/4, NPT1/4, 7/16-20UNF, M20×1.5, G1/2,
    Pressure typeG, SResponse time: 10ms
    CertificateIntrinsically safe mode E, RoHS; CE
    EMI/EMCEMI: EN50081-1/-2; EMC: EN50082-2

    Production Flow

    Packaging & Shipping

    Applied Range



    Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

    We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
