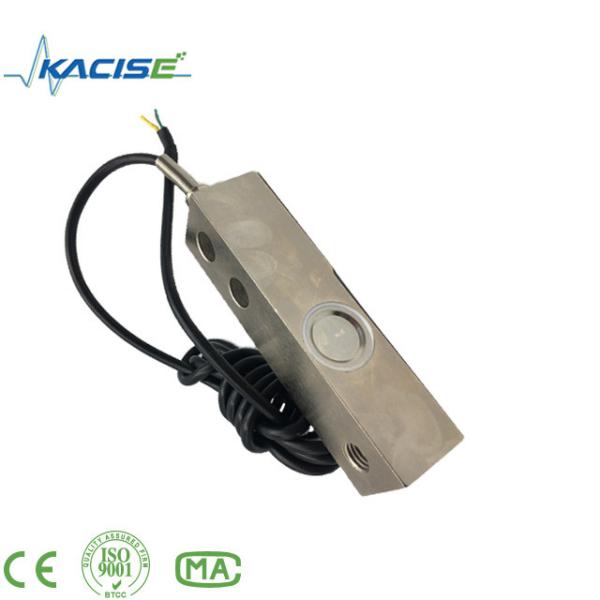

KCZ-101 Cantilever beam load cell
Description
The cantilever beam-type steel weighing sensor is designed with one
end fixed and the other end loaded, utilizing steel ball force
transfer. It incorporates either an upper and lower pressure head
bearing or a double ball head structure, coupled with an effective
sealing design. The sensor demonstrates automatic alignment after
force application, ensuring easy installation, user-friendly
operation, and excellent interchangeability.
Specifically, the KCZ-101 cantilever beam-type weighing sensor
stands out for its convenient installation, stable performance, and
high precision. It offers the flexibility to choose materials based
on the environmental conditions, providing intelligent
compensation, high-speed sampling, long-distance transmission
capability, and strong anti-interference properties. Additionally,
it is known for its simplicity of use and is supported by technical
assistance.
This sensor finds diverse applications, including ground scales,
platform scales, hopper scales, crane scales, aircraft weighing
systems, traditional lever system scales, and conversions. It is
suitable for measuring solid and liquid flows, human scales,
proportioning scales, case scales, and fine chemical proportioning
scales. The KCZ-101 sensor is recognized for its overall advantages
in performance, adaptability, and backed by technical support.
1.Features and Applications
Made of stainless steel, strong stability;
Used in various automated stamping applications, IP68 protection;
Mainly used for packing scales, hopper scale and industrial
weighing sytem.
2.Technical Specifications
| Capacity | 0.11, 0.22, 0.55, 1.1, 1.76, 2.2, 4.4t |
| Accuracy | C3 |
| Sensitivity | 1.94±0.1%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.017%F.S |
| Hysteresis | 0.017%F.S |
| Repeatability | 0.017%F.S |
| Creep (30min) | 0.0166%F.S |
| Temp.effect on output | 0.014%F.S/10℃ |
| Temp.effect on zero | 0.0125%F.S/10℃ |
| Input impedance | 390±3Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10~40℃ |
| Operation temp range | -30~70℃ |
| Safe overload | 150%F.S |
| Ultimate overload | 300%F.S |
| Cable size | Φ5.4x1500mm |
| Weight approx. | 0.9kg (0.55~1.76t) 1.6kg (2.2t) 2.2kg (4.4t) |
| Material | Stainless steel |
| IP class | IP68 |
3.Dimensions and Connection
4.Mounting dimension
| Cap (t) | A | B | C | D | E | F | G | H | J | K | M |
| 0.11~1.76 | 133.4 | 76.2 | 25.4 | 15.4 | 30.7 | 30.2 | 57.7 | 14.2 | 13 | 20.6 | M12 |
| 2.2 | 136.7 | 76.2 | 25.4 | 18.4 | 36.8 | 36.6 | 55.6 | 16.6 | 13 | 12.5 | M12 |
| 4.4 | 171.5 | 95.3 | 38.1 | 21.4 | 43.9 | 432.9 | 73.8 | 22.9 | 20.5 | 22.2 | M20 |
