    High precision refrigeration industrial pressure transmitter analog output GXPS353 Intrinsically safe mode E

    Ask Lasest Price
    Brand Name : KACISE
    Model Number : GXPS353
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000 Piece/Pieces per Month
    Delivery Time : 5 working days after payment
    • Product Details
    • Company Profile

    High precision refrigeration industrial pressure transmitter analog output GXPS353 Intrinsically safe mode E

    GXPS353 Refrigeration Industry Pressure Transmitter

    1. Feature


    Accuracy Options:

    ±0.25% F.S
    ±0.5% F.S
    ±1% F.S


    Stability and Reliability:

    High stability
    High reliability


    Core Body:

    German ceramic core body


    Calibration:

    Digital calibration


    Connector Options:

    Variety of connector choices


    Pressure Port:

    Variety of pressure port options


    Zero Adjustment:

    Zero can be arbitrarily displaced


    Certifications:

    CE certificate
    RoHS compliant


    2. Application


    Compressor

    Floor House Water Supply

    Hydraulic Control

    Air Conditioning Unit

    Automobile Engine

    Automatic Detection System

    Hydraulic Unit

    Refrigeration Equipment


    3. Introduction


    A pressure transmitter is a device designed to convert physical pressure parameters, such as those sensed by a load cell sensor in gases, liquids, and other substances, into standardized electrical signals (e.g., 4~20mADC). These signals can then be utilized for control and remote transmission purposes. Pressure transmitters play a crucial role in supplying secondary instruments, including alarms, recorders, and regulators, for tasks such as measurement, indication, and process adjustment.


    The GXPS353 stands out as a high-volume, cost-effective pressure transmitter with notable advantages such as high reliability, compact structure, small size, and light weight. This transmitter finds widespread application in areas like compressors, air conditioning, and automotive pressure measurement. Notably, the pressure core and sensor chip in the GXPS353 are imported from Germany, ensuring quality, and the device incorporates excellent digital compensation technology. The sensor has undergone intrinsic safety certification and obtained CE certification, affirming its compliance with safety standards and regulations.



    4. Electronic interface and signals definition



    5. Parameter


    Spec.Value
    Pressure range0~2bar ......600bar
    Load pressure1.5times nominal value pressure (1.5X)
    Rupture pressure3times nominal value pressure (3X)
    Accuracy±0.25%F.S, ±0.5%F.S, ±1.0%F.S
    StabilityTypical value 0.5%F.S, Max. value: 1%F.S

    Operating temperature


    -40°C~125°C


    Storage temp.

    -40~120℃

    Compensation temperature


    -10°C~ 80°C

    Medium compatibilityAll Caustic Medium Compatible with 1Cr18Ni9Ti
    Electrical performance2 wire system3 wire system
    Output signal4~20mA0.5~4.5V0-10V
    Power supply10~30Vdc5Vdc15~30Vdc
    Load pressure(U-10)/0.02(Ω)>100kΩ
    Insulation>100M Ω@50V
    Electric strength500V@60 second
    Vibration/Impact10g/5~2000Hz, axes X/Y/Z20g sine 11ms
    Pressure durable2×106pressure circle @25°C

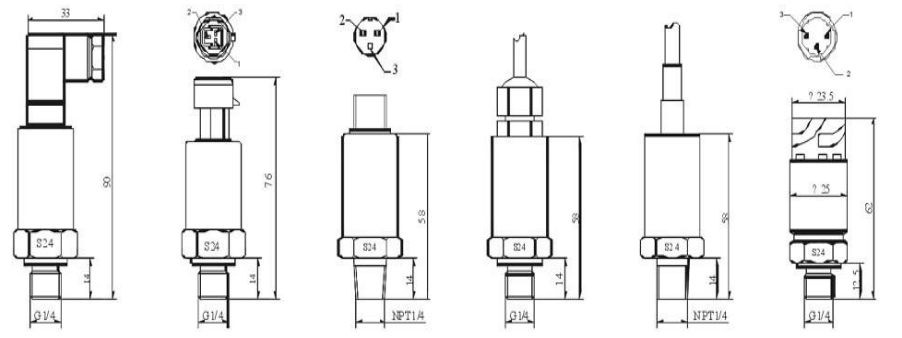

    Electrical connectionPackard, Hirsmann , air plugs, fixed cable, water proof cable
    Pressure portG1/4, NPT1/4, 7/16-20UNF, M20×1.5, G1/2,
    Pressure typeG, SResponse time: 10ms
    CertificateIntrinsically safe mode E, RoHS; CE
    EMI/EMCEMI: EN50081-1/-2; EMC: EN50082-2

    6. Ordering information

    GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length

    Type: PS353=universal type, PS353A= Current type, PS353V=Voltage type, PS353KX= Frequency conversion water supply system

    Range: 0~2bar…600bar = the upper limitation of the range

    Output: A=4~20mA, V05=0.5~4.5Vdc

    Power: 10~30Vdc, 5Vdc

    Pressure port: G=G1/4, N=NPT1/4, U=7/16-20UNF, M=M20×1.5, G2=G1/2

    Electric connection: H=DIN43650-C, GX=GX12-3, C=fixed cable, CW=waterproof joint outlet, P=Packard

    Cable length: XXm=XX meter 1-150m
