High Quality DC&AC Output GXPS100 Universal Piezoresistive
Pressure Transmitter
1,Introduction
GXPS100 Series pressure transmitter is a high-volume, civil and
industrial use,cost-effective products. Widely used in gas, liquid
pressure detection, such as water,oil, mild corrosive liquids and
gases.
The product uses 1Cr18Ni9Ti stainless steel structure, import the
internationally famous brand of diffusion of oil-filled pressure
core body, dedicated sensor instrumentation amplifier circuit which
can facilitate to calibrate its zero and full scale.
2,Feature
- Various connector and pressure port
- Non-polarity 2 line current output
- DC&AC output
- CE certificate, intrinsically safe prevent explode
- Accuracy: 0.5%F.S
- Import high quality core
- Multiple pressure range and output signal

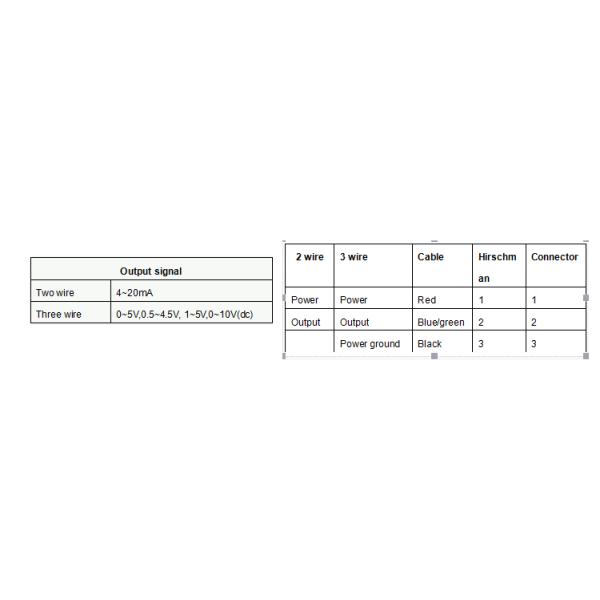

3,Electronic interface and signals definition
4,Parameter
| Spec. | Value |
| Pressure range | 0~0.2MPa......60MPa
2bar…600bar
29psi…8700psi
20000MmH20…6118000mmH2O
1.97atm…592atm |
| Load pressure | 1.5 times nominal value pressure (1.5X) |
| Rupture pressure | 3 times nominal value pressure (3X) |
| Accuracy | ±0.5%F.S(PT 300 or MARS for higher accuracy are available) |
| Stability | Typical value 0.25%F.S, Max. value: 0.4%F.S |
| Operating temperature | -40°C~120°C |
| Compensation temperature | -10°C~70°C |
| Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti |
| Electrical performance | 2 wire system | 3 wire system |
| Output signal | 4~20mA | 0~5V | 1~5V | 0.5~4.5V | 0~10V |
| Power supply | 10~30Vdc | 8~30Vdc | 5V(ratio) | 11~30Vdc |
| Load pressure | (U-10)/0.02(Ω) | 〉100kΩ |
| Insulation | 〉100M Ω@50V |
| Electric strength | 500V@60 second |
| Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms |
| Pressure durable | 2×106pressure circle @25°C |
| Display range | -999~1999@(PT110&PT111) |
| Contact capacity | (24V, 1A)@PT111 |
| Electrical connection | Hirsmann , air plugs, fixed cable, water proof cable |
| Pressure port | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 |
| Pressure type | G, S | Response time: 10ms |
| Certificate | Intrinsically safe mode E, CE |
| EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 |
5,Application
☆ Vessel pressure
☆ Petrochemical
☆ Industrial Process Control
☆ Gas storage facility
☆ Hydraulic and lubrication
☆ Constant pressure water supply
☆ Pipeline pressure
6,Ordering information
GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable
length-Package
- Type: PS100=universal type, PS100E=intrinsically safe mode,
PS110=PS100+indicator
- Range: 0~0.2…60MPa, 0~2bar…600bar= the upper limitation of the
range
- Output:: A=4~20mA, V=0~5Vdc, V05=0.5~4.5Vdc, V1=1~5Vdc, V2=0~10Vdc
- Power: 5Vdc, 24Vdc, 6~24Vdc, 10~30Vdc, 11~30Vdc
- Pressure port: M=M20×1.5, G=G1/4, G2=G1/2, R2=R1/2, N2=NPT1/2
- Electric connection: H=DIN43650-A, GX=GX16-7, C=fixed cable outlet,
CW=waterproof joint outlet
- Cable length: XX m=XX meter 1-150m
- Package: Bb, Foam
e.g. GXPS100-3MPa- A-0.5-DC24-P-Foam
PS100, test range is 0-3MPa, accuracy is 0.5%, 24Vdc power supply
4-20mA output, pressure port with M20X1.5, foam packaged.
