Universal Flange Solid Fluid Level Meter Digital Electronic Radar Level Meter

Kacise 26G solid Radar Level transmitter powder Radar Level meterultrasonic level meter digital meter electronic meter

Principle

Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals (because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost instantaneous).

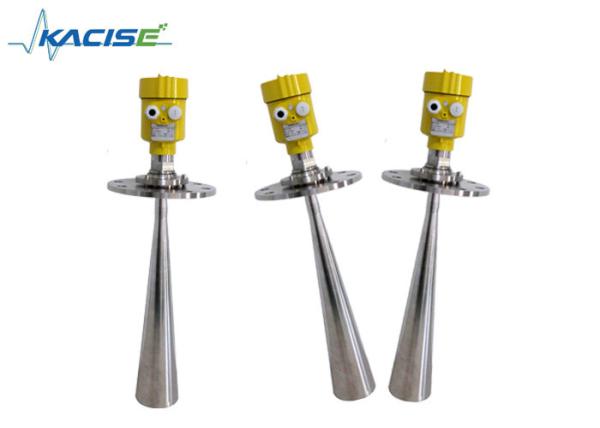

Universal Flange Solid Fluid Level Meter Digital Electronic Radar Level Meter

The characteristics of 26G radar level meter:

1) Small antenna size, easy to install; Non-contact radar, no wear, no pollution.

2) Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.

3) Serious dust environment on the high level meter work has little effect.

4) A shorter wavelength, the reflection of solid surface inclination is better.

5) Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.

6) The measuring range is smaller, for a measurement will yield good results.

7) High signal-to-noise ratio, the level fluctuation state can obtain better performance.

8) High frequency, measurement of solid and low dielectric constant of the best choice.

Product1 Parameters

Suitable for Medium	Strongly corrosive liquid
Application	HCl, H₂SO₄, HF and strong base in tank, etc.
Measuring Range	10m
Process Connection	Flange, Min. flange is DN80
Medium Temperature	-40 ~ 120 ℃
Process Pressure	-0.1 ~ 0.1MPa
Accuracy	±5~10mm
Protection Grade	IP67
Frequency Range	26GHz
Explosion-proof Grade	Exia IICT6 Gb
The signal Output	4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional

Product2 Parameters

Suitable for Medium	Resistance to temperature and pressure, and slightly corrosive liquid.
Application	Acetone, toluene, toluene, DM, etc. in tank
Measuring Range	30m
Process Connection	Flange, Min. flange is DN80
Medium Temperature	-40 ~ 150 ℃
Process Pressure	-0.1 ~ 4MPa
Accuracy	±3~10mm
Protection Grade	IP67
Frequency Range	26GHz
Explosion-proof Grade	Exia IICT6 Gb
The signal Output	4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional

Product3 Parameters

Suitable for Medium	Powder, granule, bulk solid
Application	Lime powder, cement, coal ash, coal and ore etc. in silo
Measuring Range	35m for powder, 45m for granule and block
Process Connection	Flange, Min. flange is DN100
Medium Temperature	-40 ~ 250 ℃
Process Pressure	-0.1 ~ 0.1MPa
Accuracy	±20~50mm
Protection Grade	IP67
Frequency Range	26GHz
Explosion-proof Grade	Exia IICT6 Gb
The signal Output	4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional

Product4 Parameters

Suitable for Medium	Powder, granule, bulk solid
Application	Lime powder, cement, coal ash, coal and ore etc. in silo
Measuring Range	50m for powder, 70m for granule and block
Process Connection	Flange, Min. flange is DN250
Medium Temperature	-40 ~ 250 ℃
Process Pressure	-0.1 ~ 0.1MPa
Accuracy	±20~50mm
Protection Grade	IP67
Frequency Range	26GHz
Explosion-proof Grade	Exia IICT6 Gb
The signal Output	4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional

Product5 Parameters

Suitable for Medium	Powder, granule, bulk solid
Application	Lime powder, cement, coal ash, coal and ore etc. in silo
Measuring Range	15m for powder, 20m for granule and block
Process Connection	Flange, Min. flange is DN100
Medium Temperature	-40 ~ 250 ℃
Process Pressure	-0.1 ~ 0.1MPa
Accuracy	±20~50mm
Protection Grade	IP67
Frequency Range	26GHz
Explosion-proof Grade	Exia IICT6 Gb
The signal Output	4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional

Product6 Parameters

Suitable for Medium	Liquid without pressure
Application	Pharmaceutical plants, food factories have sanitary requirements for the tank and process tank
Measuring Range	20m
Process Connection	Flange, Min. flange is DN100
Medium Temperature	-40 ~ 150 ℃
Process Pressure	-0.1 ~ 0.1MPa
Accuracy	±3~10mm
Protection Grade	IP67
Frequency Range	26GHz
Explosion-proof Grade	Exia IICT6 Gb
The signal Output	4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional
