    POM Material 20mA RS485 Nitrogen Sensor Water IP68 Protection

    Ask Lasest Price
    Brand Name : kacise
    Model Number : KAN601
    Certification : CE,FDA
    Price : $0-$2000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    POM Material 20mA RS485 Nitrogen Sensor Water IP68 Protection

    Ip68 4~20mA RS485 Ammonia Nitrogen Sensor For Water Quality

    Kacise KAN601 Online Ammonia Nitrogen Sensor Patented Probe IP68 Protection Level Easy To Install: 3/4 NPT Thread

    KAN601 Online Ammonia Nitrogen Sensor

    Application Environment

    KAN601 integrated online ammonia nitrogen sensor is fabricated using a PVC membrane-based ammonium ion-selective electrode for testing ammonium ion content in water with temperature compensation to ensure fast, simple, accurate, and economical testing. The technical parameters, maintenance, and communication protocols of the ammonia nitrogen sensor are described in detail in this user manual.

    • Signal output: RS-485 bus, Modbus/RTU protocol, convenient to connect to PLC, DCS, industrial control computer, general controller, paperless recording instrument or touch screen, and other third-party equipment.
    • In the patented ammonium ion probe, the internal reference solution oozes extremely slowly from the microporous salt bridge at a pressure of at least 100 KPa (1 Bar). Such a reference system is very stable and has a longer electrode life than conventional industrial electrodes.
    • Easy to install: 3/4 NPT thread (pipe thread) for easy submersible installation or installation in pipes and tanks.
    • IP68 protection level.

    Technical Specifications

    ModelKAN601
    Measuring range0~10.00mg/L(0~100.00mg/L)
    Resolution0.1mg/L
    Accuracy±10% or ±1mg/L
    Working temperature0~40℃
    Working pressure<0.1MPa
    Medium PH range4~10 pH
    Temperature compensationTemperature compensation (Pt1000)
    Power supply12~24 VDC ±10%
    Signal outputRS-485 bus, Modbus/RTU protocol
    Wetted materialPVC and POM
    Installation3/4NPT thread, immersion installation
    Cable length5 meters, other lengths can be customized
    CalibrationTwo-point calibration
    Power consumption<0.3W@12V
    Protection gradeIP68

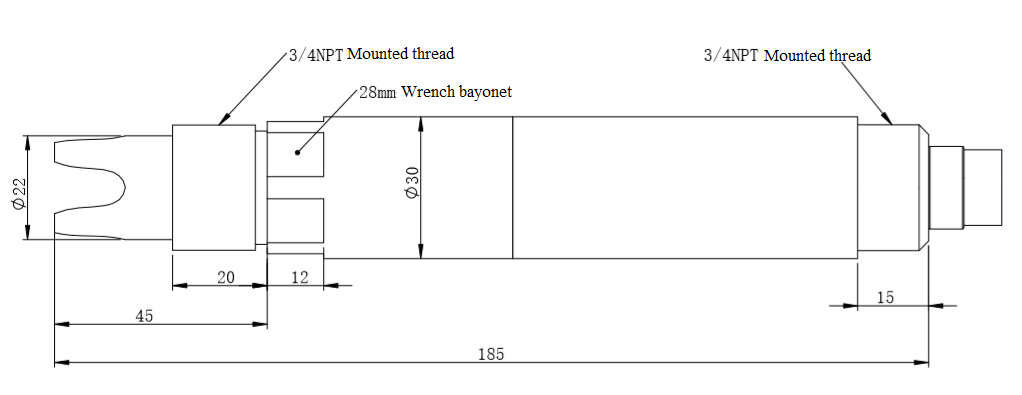

    Dimensional Drawing

    Tip: Do you know this method for determining ammonia nitrogen?

    Meteorological molecular absorption spectroscopy:

    Sodium hypobromite oxidant is added to the water sample to oxidize ammonium and ammonium salt into nitrite, and then the ammonia nitrogen content in the water sample is determined by the nitrite nitrogen image analysis absorption spectrometry.

    This method measures 0.005mg/L on the lower line and 100mg/L on the upper line. It can be used for the determination of ammonia nitrogen in surface water, groundwater, and seawater.
