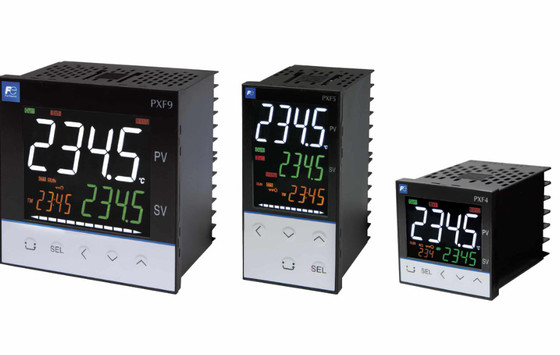

Fuji Module Type Temperature Controller (Model: PXF)
Product Introduction
The Fuji Module Type Temperature Controller (Model: PXF) is a
precision industrial instrument designed for reliable temperature
regulation in general machinery applications. Engineered with a
microcontroller-based design, this controller ensures accurate
temperature monitoring and control within the range of -10°C to
50°C, suitable for indoor use in environments with up to 90% RH
(non-condensing). It complies with safety standards such as UL61010
and EN61010, featuring basic insulation and overvoltage protection,
making it ideal for industrial setups requiring stable temperature
management. The controller supports various input/output
configurations and communication protocols (MODBUS), allowing
seamless integration into automated systems.
Product Features
Precision Temperature Control:
Microcontroller-based design (Model: PXF) for accurate temperature
regulation.
Operating ambient temperature: -10°C to 50°C; humidity: ≤90% RH
(non-condensing).
Safety & Compliance:
Overvoltage Category II, Pollution Degree 2 (IEC 61010-1).
Basic insulation (1500V AC) and functional insulation (500V AC) for
electrical safety.
Complies with UL61010 and EN61010 standards when installed as
specified.
Input/Output Capabilities:
Supports process value input, remote set value (SV) input, and CT
input.
Control outputs: SSR drive, current/voltage outputs, relay
contacts, motorized valve controls.
Digital inputs (1–5) and RS-485 communication (MODBUS compatible).
Installation & Wiring:
Flush mounting design with included bracket and waterproof packing.
Required fuse: 250VAC, 0.1A T (for 100–240V AC) or 1A T (for 24V
DC/AC).
Wiring must be performed by qualified personnel per local
standards.
Environmental & Operational Notes:
Indoor use only; must be mounted in an enclosure to prevent
electric shock.
Do not use for safety-critical applications (e.g., human
protection, transportation).
Communication & Connectivity:
RS-485 interface for MODBUS communication (refer to INP-TN5A2227-E
manual).
Accessories & Documentation:
Includes temperature controller, instruction manual, mounting
bracket, waterproof packing.
Additional manuals available: EDS11-178 data sheet, INP-TN5A2400-E
operation manual.
