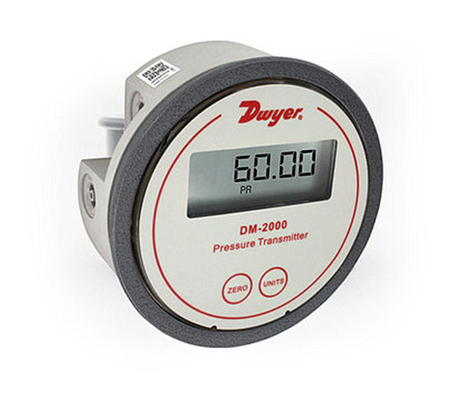

Dwyer Series DM-2000 Differential Pressure Transmitter

Product Introduction

The Dwyer DM-2000 Series Differential Pressure Transmitter is a high-precision instrument designed to measure pressure differences in air and non-combustible gases, outputting a standard 4–20 mA signal for seamless integration with industrial control systems. Engineered with a glass-filled plastic housing, it shares identical mounting dimensions with the standard Magnehelic® gauge, enabling straightforward field upgrades. The transmitter features digital push-button zero and span adjustments for easy calibration, optional 3.5-digit LCD display, and field-selectable engineering units, making it ideal for filter monitoring, fan pressure analysis, and building static pressure control.

Product Features

Accuracy & Stability:

±1% FS accuracy at 70°F (21°C) with ±1% FS/year long-term stability.

Thermal effect: ±0.055% FS/°F (0.099% FS/°C) for consistent readings across temperatures.

Signal Output & Compatibility:

4–20 mA output (2-wire) with loop resistance up to 1250 Ω.

Direct replacement for Magnehelic® gauges, reducing installation time.

User-Friendly Design:

Digital push-button zero/span calibration eliminates manual potentiometer adjustments.

Optional 3.5-digit LCD (0.7" height) for real-time local readings in 4–6 engineering units.

Durable Construction:

Glass-filled plastic housing with 10 psig (0.69 bar) pressure limit.

Operating temperature: 20–120°F (-6.67–48.9°C) for reliable performance in industrial environments.

Flexible Installation:

1/8" ID tubing connections for quick pressure port setup.

Vertical mounting orientation with integral bracket for easy integration.

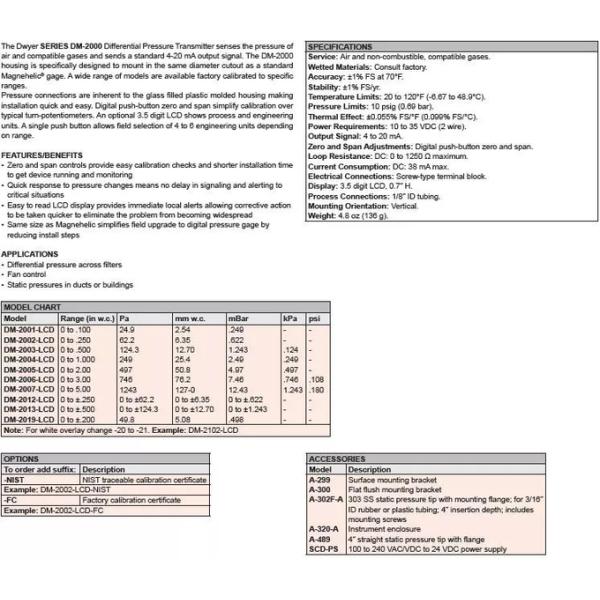

Technical Specs at a Glance
