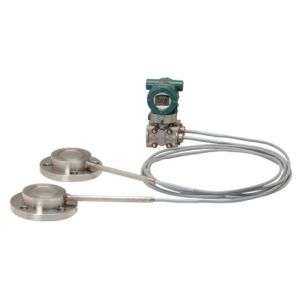

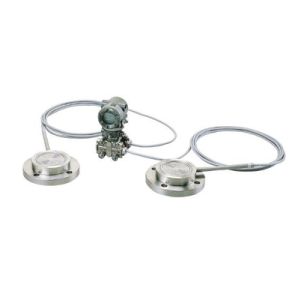

EJA118E Differential Pressure Transmitter with Remote Diaphragm
Seal
Product Introduction
The EJA118E is a differential pressure transmitter equipped with a
remote diaphragm seal, designed to meet the requirements of various
industrial measurement scenarios. As a new 100% original product,
it offers reliable performance and accurate measurement
capabilities, making it suitable for applications where precise
differential pressure monitoring is essential. With its output
signal of 4 to 20 mA DC, it can seamlessly integrate into
industrial control systems, providing valuable data for process
control and monitoring.
Product Features
Remote Diaphragm Seal: Equipped with a remote diaphragm seal,
enabling it to measure differential pressure in challenging
environments where direct measurement may be difficult, such as in
viscous, corrosive, or high-temperature media.
High Accuracy: Boasts an accuracy of ±0.2%, ensuring precise and
reliable differential pressure measurements, which is crucial for
maintaining process efficiency and quality.
Quick Response: Features a response time of 200 ms, allowing it to
promptly detect and respond to changes in differential pressure,
facilitating real-time process control.
Safety Certifications: Certified by Exida and TUV for SIL2 / SIL3,
ensuring it meets strict safety standards and can be used in
safety-critical applications.
Convenient Setting: Includes Local Parameter Setting (LPS), making
it easy to configure and adjust parameters on-site without the need
for complex tools.
Advanced Signal Processing: Comes with a 10-segment signal
characterizer, enabling flexible signal processing to adapt to
different process requirements.
Compensation Function: Features active capillary filling fluid
density compensation, ensuring measurement accuracy is not affected
by changes in the density of the filling fluid in the capillary,
even under varying conditions.
Product Parameters
Type: Differential Pressure Transmitter with Remote Diaphragm Seal
Output Signal: 4 to 20 mA DC
Accuracy: ±0.2%
Response Time: 200 ms
Certifications: Exida and TUV SIL2 / SIL3
Supply Voltage: 10.5 to 42V DC
Maximum Working Pressure (MWP): 16MPa
Special Features: Local Parameter Setting (LPS); 10-segment signal
characterizer; active capillary filling fluid density compensation
Condition: New 100% Original
