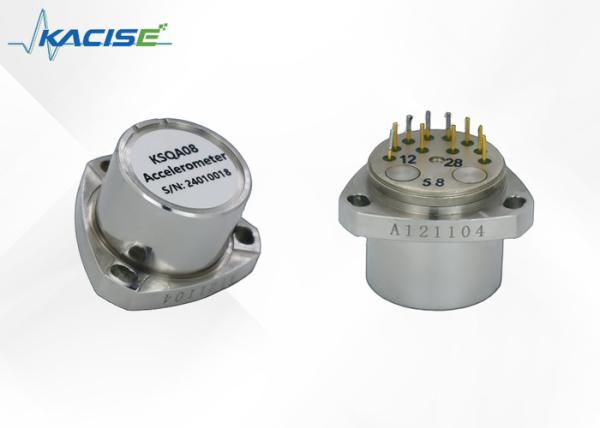

Product Description:
The Quartz Flexible Accelerometer is a precision instrument that is
made up of quartz glass flexible support and an advanced servo
circuit. The device operates on the principle of inertia. When the
carrier undergoes an acceleration, the output of the accelerometer
is proportionate to the input acceleration. As a result, users can
rely on the output to be precisely indicative of the acceleration
experienced.
The accelerometer we offer includes a high output impedance and
uses a current output form. Users have the flexibility to choose a
sampling resistance according to their needs without having to
worry about any disruption in the stability of their system.
We offer a range of quartz flexible accelerometers, from the
high-precision μg KSQA07 accelerometer, which is designed for
satellite microgravity measurement, to the low-cost anti-harsh
environment KSQA13 accelerometer. Our products cover dozens of
types and are widely utilized in aerospace, aviation, navigation,
ship, vehicle, petroleum, geotechnical engineering and other
fields. These accelerometers are used to provide signals for
navigation, guidance, control, leveling, monitoring, and other
systems.
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new
generation weapon
● Two models are available
Technical Parameters:
| Parameter | KSQA08A | KSQA08B |
| Power supply parameter |
| Power Voltage | ±12~±18V DC |
| Product performance |
| Input Range | ±20g | ±20g |
| Bias | ≤5mg | ≤5mg |
| Temperature Sensitivity | ≤10μg/°C | ≤30μg/°C |
| One-month Composite Repeatability (1σ) | ≤10μg | ≤30μg |
| Six-month Composite Repeatability (1σ) | ≤30μg | |
| Scale Factor | 1.2 ~ 1.6mA/g | 1.2 ~ 1.6mA/g |
| Temperature Sensitivity | ≤10ppm/°C | ≤50ppm/°C |
| One-month Composite Repeatability (1σ) | ≤10ppm | ≤40ppm |
| Six-month Composite Repeatability (1σ) | ≤50ppm | |
| Linearity | ≤10μg/g2 | ≤40μg/g2 |
| Threshold | <1μg | <5μg |
| Resolution | <1μg | <5μg |
| Size | Ø25.4×30mm | Ø25.4×30mm |
| Weight | ≤70g | ≤70g |
| Environment |
| Operating Temperature | -45°C~+80°C |
| Storage temperature | -55°C～+80°C |
| Shock | 100g |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
