Product Description:
The Quartz Flexible Accelerometer is a precision instrument that
consists of a flexible support made of quartz glass and an advanced
servo circuit that is based on the principle of inertia. The output
of the accelerometer is precisely proportional to the input
acceleration when the carrier is subjected to acceleration.
Our accelerometer has a current output form of high output
impedance, and users can choose the sampling resistance according
to their requirement without affecting the stability of the system.
At present, our Quartz Flexible Accelerometer has formed a series
of products that include high-precision μg KSQA07 accelerometer for
satellite microgravity measurement to low-cost, anti-harsh
environment KSQA13 accelerometer, as many as dozens. They are
widely used in aerospace, aviation, navigation, ship, vehicle,
petroleum, geotechnical engineering and other fields, providing
signals for navigation, guidance, control, leveling, monitoring and
other systems.
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new
generation weapon
● Two models are available
Technical Parameters:
| Parameter | KSQA08A | KSQA08B |
| Power supply parameter |
| Power Voltage | ±12~±18V DC |
| Product performance |
| Input Range | ±20g | ±20g |
| Bias | ≤5mg | ≤5mg |
| Temperature Sensitivity | ≤10μg/°C | ≤30μg/°C |
| One-month Composite Repeatability (1σ) | ≤10μg | ≤30μg |
| Six-month Composite Repeatability (1σ) | ≤30μg | |
| Scale Factor | 1.2 ~ 1.6mA/g | 1.2 ~ 1.6mA/g |
| Temperature Sensitivity | ≤10ppm/°C | ≤50ppm/°C |
| One-month Composite Repeatability (1σ) | ≤10ppm | ≤40ppm |
| Six-month Composite Repeatability (1σ) | ≤50ppm | |
| Linearity | ≤10μg/g2 | ≤40μg/g2 |
| Threshold | <1μg | <5μg |
| Resolution | <1μg | <5μg |
| Size | Ø25.4×30mm | Ø25.4×30mm |
| Weight | ≤70g | ≤70g |
| Environment |
| Operating Temperature | -45°C~+80°C |
| Storage temperature | -55°C～+80°C |
| Shock | 100g |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |

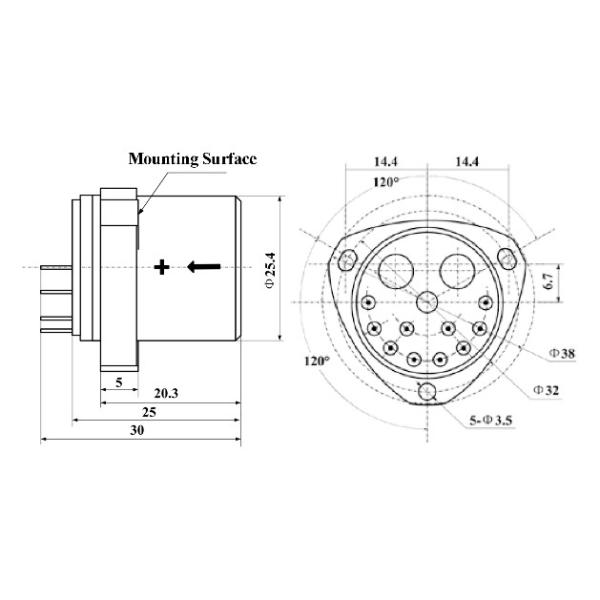

Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
