Product Description:

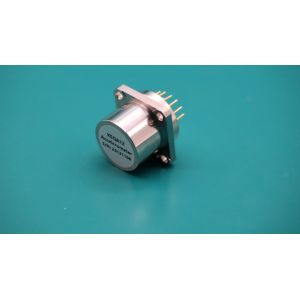

The Quartz flexible accelerometer is an instrument of high
precision that is comprised of a quartz glass flexible support and
an advanced servo circuit. This is based on the principal of
inertia. When the carrier is subjected to acceleration, the output
of the accelerometer is precisely proportional to the input
acceleration.
In addition, our accelerometer has a high output impedance current
output form which allows users to choose the sampling resistance
they need without affecting the stability of the system. It is
highly versatile and customizable device that can be adjusted to
meet the needs and preferences of different users.
Currently, our quartz flexible accelerometer has a wide range of
product offerings. These types range from the high-precision μg
KSQA07 accelerometer used for satellite microgravity measurements
to the low-cost, anti-harsh environment KSQA13 accelerometer. The
series includes dozens of products that are widely used in
aerospace, aviation, navigation, ship, vehicle, petroleum,
geotechnical engineering, and many other fields. They provide
invaluable signals for navigation, guidance, control, leveling,
monitoring, and other systems.
Whether you are in need of a high-precision and specialized
accelerometer for your satellite microgravity measurement or a
low-cost yet versatile accelerometer for your geotechnical
engineering project, we have a product that meets your needs. With
our quartz flexible accelerometer, you can expect precision,
stability and high-quality performance in all your applications.
Features:
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Triangle precision mounting flanges
● Application in unmanned aircraft and petroleum pipeline
● Two models are available
Technical Parameters:
| Parameter | KSQA12A | KSQA12B |
| Power supply parameter |
| Power Voltage | ±12~±18V DC |
| Product performance |
| Input Range | ±80g | ±30g |
| Bias | ≤5mg | ≤5mg |
| Temperature Sensitivity | ≤40μg/°C | ≤50μg/°C |
| One-month Composite Repeatability (1σ) | ≤40μg | ≤80μg |
| Scale Factor | 0.6 ~ 1.3mA/g | 0.9 ~ 1.3mA/g |
| Temperature Sensitivity | ≤60ppm/°C | ≤60ppm/°C |
| One-month Composite Repeatability (1σ) | ≤40ppm | ≤80ppm |
| Linearity | ≤50μg/g2 | ≤50μg/g2 |
| Threshold | <5μg | <5μg |
| Resolution | <5μg | <5μg |
| Size | Ø18.2×23.6mm | Ø18.2×23.6mm |
| Weight | ≤35g | ≤35g |
| Environment |
| Operating Temperature | -45°C~+80°C |
| Storage temperature | -55°C～+80°C |
| Shock | 100g |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
