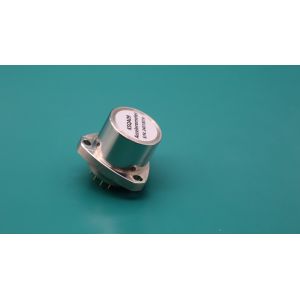

Product Description:
The Quartz flexible accelerometer is a highly precise instrument
that comprises of a flexible support made of quartz glass and an
advanced servo circuit based on the principle of inertia. The
output of the accelerometer is precisely proportional to the input
acceleration when the carrier is subjected to acceleration.
Our accelerometer has a high output impedance in the current output
form, and users can choose the sampling resistance based on their
requirements without worrying about affecting the stability of the
system.
Currently, our Quartz flexible accelerometer has developed a series
of products that includes dozens of types, ranging from
high-precision μg KSQA07 accelerometer for satellite microgravity
measurement to the low-cost, anti-harsh environment KSQA13
accelerometer.
Our accelerometer finds wide applications in various fields,
including aerospace, aviation, navigation, ship, vehicle,
petroleum, geotechnical engineering, etc. Its accuracy in providing
signals for navigation, guidance, control, leveling, monitoring and
other systems makes it a preferred choice in these industries.
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new
generation weapon
● Two models are available
Technical Parameters:
| Parameter | KSQA09A | KSQA09B |
| Power supply parameter |
| Power Voltage | ±12~±18V DC |
| Product performance |
| Input Range | ±80g | ±40g |
| Bias | ≤5mg | ≤5mg |
| Temperature Sensitivity | ≤30μg/°C | ≤50μg/°C |
| One-month Composite Repeatability (1σ) | ≤30μg | ≤60μg |
| Scale Factor | 0.9 ~ 1.3mA/g | 0.9 ~ 1.3mA/g |
| Temperature Sensitivity | ≤50ppm/°C | ≤80ppm/°C |
| One-month Composite Repeatability (1σ) | ≤40ppm | ≤60ppm |
| Linearity | ≤40μg/g2 | ≤40μg/g2 |
| Threshold | <5μg | <5μg |
| Resolution | <5μg | <5μg |
| Size | Ø25.4×30mm | Ø25.4×30mm |
| Weight | ≤80g | ≤80g |
| Environment |
| Operating Temperature | -45°C~+80°C |
| Storage temperature | -55°C～+80°C |
| Shock | 100g |
| Vibration Peak Sine | 20g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
