KUM-100 Four Wire Ultrasonic Level Meter For Non-contact Level Measurement

Ask Lasest Price
Brand Name :	KACISE
Model Number :	KUM-100
Certification :	CE
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000 Piece/Pieces per Week negotiable
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

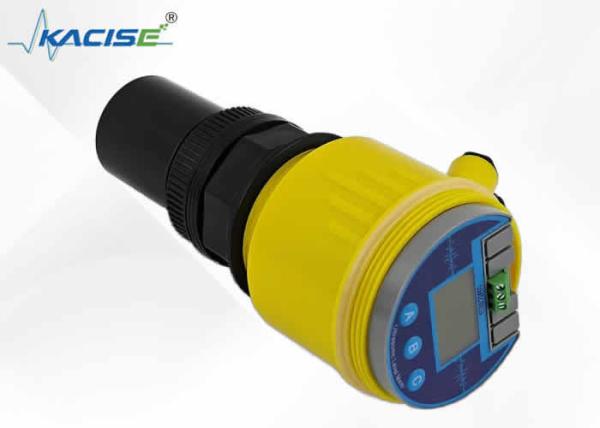

KUM-100 Four Wire Ultrasonic Level Meter For Non-contact Level Measurement

Product Description

The KUM-100 four-wire ultrasonic level meter is a top-notch solution for non-contact level measurement. It employs ultrasonic technology to emit high-frequency sound waves that travel through the medium and bounce back from the liquid or solid surface, precisely calculating the level distance. This four-wire configuration ensures stable power supply and reliable signal transmission. Ideal for a wide range of industries, from chemical plants and oil refineries to water treatment facilities and food processing units. It offers accurate and continuous level data, enabling efficient inventory management, process optimization, and enhanced safety by preventing overflows or dry-running, thereby maximizing operational efficiency.
Feature

LCD display
Solid level/liquid level mode selection
Can arbitrarily set the starting point and end point of the output range
With 4G/LoRa wireless communication (optional)
With restore setting function, support to restore factory settings
With digital filtering, dynamic echo recognition*Digital sensor, RS-485 output, support MODBUS
No reagents, no pollution, more economical and environmentally friendly
Automatically compensates for pH and temperature in water

Parameter

Range	0-10m
Accuracy	±0.5%F.S
Display	LCD
Power supply	DC12-28V
Electrical interface	M16*1.5
Protection	IP65
Blind zone	0.4m
Resolution	1mm
Keys	Three patch buttons
Power consumption	<0.6W
Thread	G2
Working environment	temperature & pressure
Output	4 -wire 4 - 20mA, RS485, 2 relay (Default)

Working Principle & Wiring

Product Dimension
