    Spherical Tank Liquid Level Measurement External Mounted Water Level Sensor with 10m Measuring Range

    Ask Lasest Price
    Brand Name : KACISE
    Model Number : KUM-2601
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Piece/Pieces per Week negotiable
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Spherical Tank Liquid Level Measurement External Mounted Water Level Sensor with 10m Measuring Range

    External mounted water level sensor is used to measure the liquid level of spherical tanks

    Product Overview

    The External Mounted Water Level Sensor is an advanced and highly reliable device specifically engineered to accurately measure the liquid level within spherical tanks. It is ingeniously designed with state-of-the-art technology and durable materials. This sensor offers precise and continuous monitoring, ensuring the most accurate data collection. Its external mounting feature allows for easy installation and convenient maintenance. It is suitable for a wide range of liquid substances and can operate effectively in various environmental conditions, providing crucial information for efficient tank management and process control.

    Technical Parameters

    Non-Intrusive Level Gauge Two-wire Four-wire
    Measuring Range 3m, 5m, 10m, 15m, 20m, 30m, 50m
    Display Resolution 1mm
    Short-Term Repetition 1mm
    Error ±1‰FS, ±2‰FS, ±5‰FS
    Temperature Range -45℃~+100℃
    Accuracy 1℃
    Output 4~20mA (Maximum load 500Ω), HART,Modbus
    Power Supply DC24V (22V~36V) DC24V (18V~30V)
    Power < 1 W < 1 W
    Communication RS-485,Infrared, HART,Modbus
    Relay Alarm Output AC 250V 5A, DC 30V 5A
    Ambient Temperature Host -40℃~+80℃
    Ambient Temperature Display -20℃~+70℃
    Ambient Temperature Sensor -50℃~+100℃
    Ambient humidity (0%~95%)RH
    Explosion-proof ExdⅡCT6
    Protection IP65, IP67
    Display 128×64 LCD
    Blind Area < 30mm Under ideal working conditions
    Electrical Interface M20X1.5 (F), 1/2 NPT (F)
    Cable Length 5m, optional
    Host size / weight 158mmx122mmx148mm, 2kg, base hole dia M5

    Level Gauge Dimension

    Host Dimension

    Spherical Tank Liquid Level Measurement External Mounted Water Level Sensor with 10m Measuring Range

    Sensor Probe Dimension

    Spherical Tank Liquid Level Measurement External Mounted Water Level Sensor with 10m Measuring Range

    Installation diagram

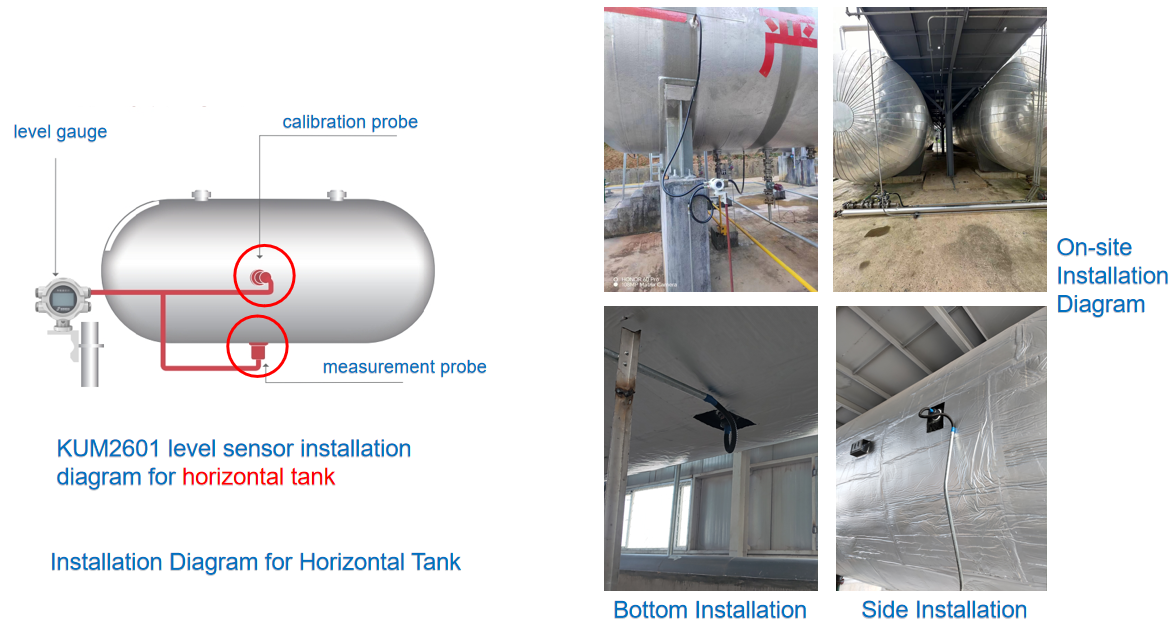

    horizontal tank

    Spherical Tank Liquid Level Measurement External Mounted Water Level Sensor with 10m Measuring Range

    vertical tank

    Spherical Tank Liquid Level Measurement External Mounted Water Level Sensor with 10m Measuring Range

    Ball Tank

    Spherical Tank Liquid Level Measurement External Mounted Water Level Sensor with 10m Measuring Range

    Production Flow

    Spherical Tank Liquid Level Measurement External Mounted Water Level Sensor with 10m Measuring Range

    Packaging & Shipping

    Spherical Tank Liquid Level Measurement External Mounted Water Level Sensor with 10m Measuring Range

    Company Information

    Spherical Tank Liquid Level Measurement External Mounted Water Level Sensor with 10m Measuring Range

    Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

    We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

    Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

    Our Services
    • Your inquiry will be replied in 24hours.
    • Well-trained and experienced staffs to answer all your enquires in fluent English.
    • OEM&ODM, we can help you to design and your request will be put into product.
    • Distributorship are offered for your unique design and some our current models.
    • Protection of your sales area, ideas of design and all your private information.
    • Discounts are offered based on order quantities.
    Feedback

    Spherical Tank Liquid Level Measurement External Mounted Water Level Sensor with 10m Measuring Range

    FAQ

    1. Q: What information need to be provided to choose the suitable model External mounted water level sensor is used to measure the liquid level of spherical tanks?

    A: Please provide us:Range, medium, temperature, tank type (horizontal tank, vertical tank, spherical tank, etc.)so we can choose model and quote for you quickly.

    2. Q: Are you a trade company or a manufacturer?

    A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

    OEM & ODM service are available. Welcome to visit us.

    3. Q: What is your MOQ?

    A: To start our cooperation, sample order is acceptable.

    4. Q: What is your delivery date?

    A: The delivery date is about 3-15 working days after receipt of payment.

    5. Q: What is your payment terms?

    A: We support T/T, PayPal and Trade Assurance.

    For mass production order, it is 30% deposit in advance and 70% balance before shipment.

    6. Q: What is Trade Assurance payment method:

    A: It’s a free service which can protect your orders from payment to delivery.

    And we now have USD104,000.00 of caution money to assure your orders.

    7. Q: Do you have a warranty?

    A: Yes, we have the warranty of 12 months.
